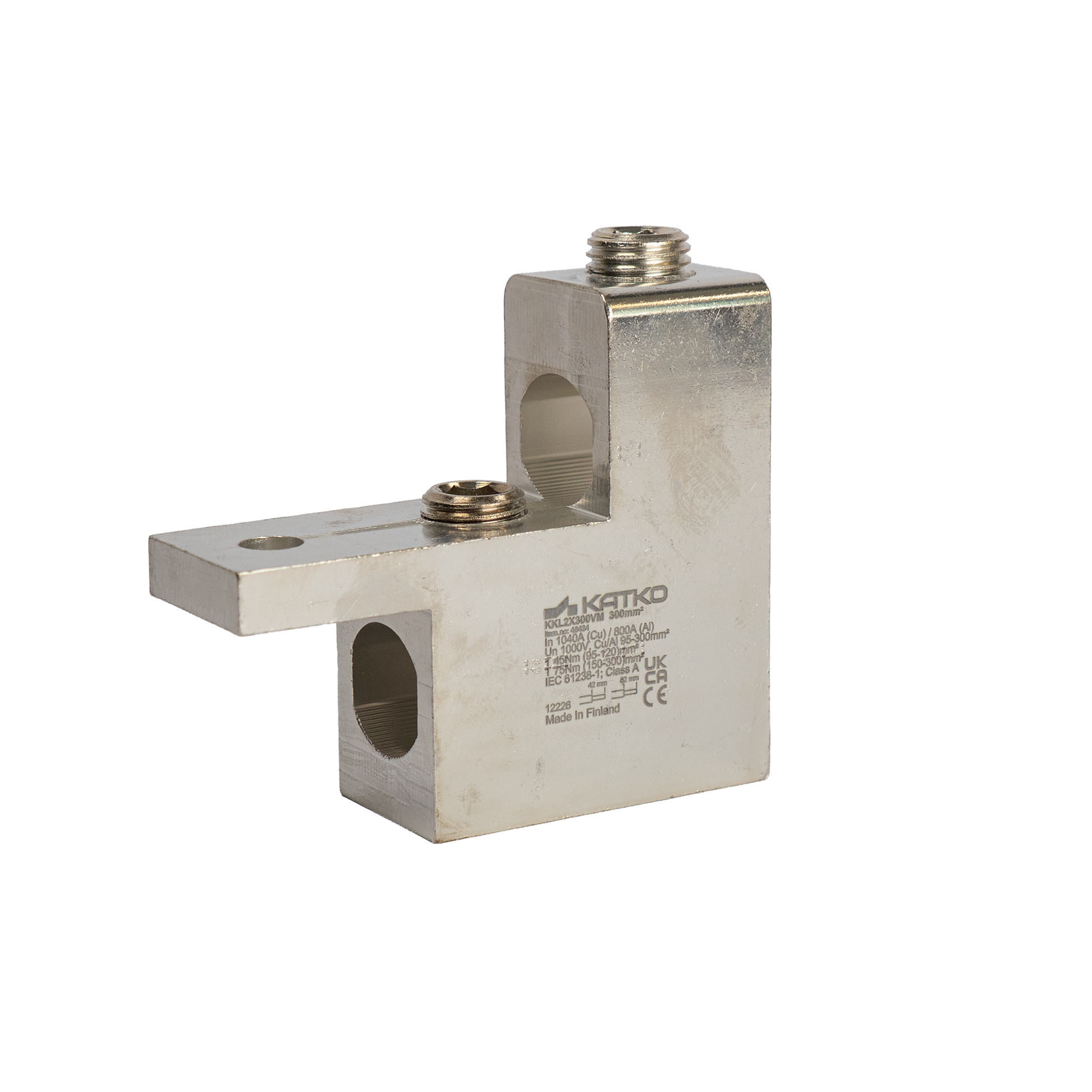

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Product details and documents
Technical data
Depth
105 mm
ETIM Class
EC000897
E-number FI
1942115
GTIN
6419410484340
Height
120 mm
In Al
800.0
In Cu
1040.0
Key size
Hex 12
Net weight
1.1209 kg
Product type
KKL2X300VM
Short product description
Cable connector KKL 2xAl/Cu 95-300mm2
Torque Al/Cu (Nm)
45 (95-120 mm²) / 75 (150-300 mm²)
Volume
0.504 l
Width
40 mm
No dimensional drawings available for this product.
Dimensional drawing
No dimensional drawings available for this product.
Logistical data
Downloadables
No downloadable files available for this product.
