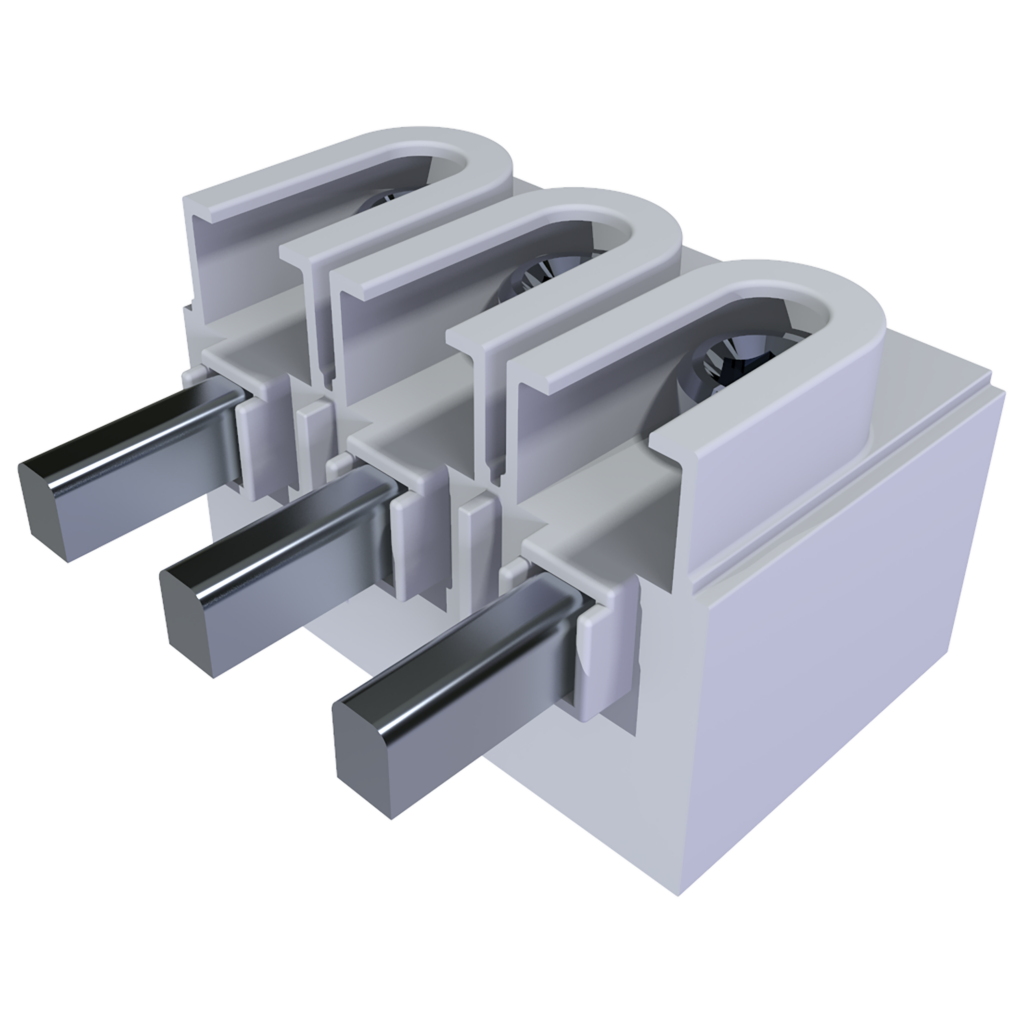

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Technical data
GTIN
6419410292945
Al (mm²)
1,5-16
Cu (mm²)
1,5-16
Depth
24.5 mm
ETIM Class
EC001284
E-number FI
1942148
Height
37.3 mm
In Al
63.0
In Cu
63.0
Key size
Hex 4
Net weight
0.0199 kg
Product type
KKL3X1X16T
Short product description
Cable connector KKL 3x1xAl/Cu 1,5-16mm2
Technical name
1x1,5-16mm² Al/Cu
Torque Al/Cu (Nm)
5
Volume
0.0329 l
Width
36 mm
Dimensional drawing
Logistical data
Package size 1
10
Package size 1 GTIN code
6419410292945
Package size 1 weight
0.0199 kg
Downloadables
- Dimensional drawings media (ConnectSafe_KKL3X1X16T_Dim.png)
- Brochures (Katko ConnectSafe Catalogue - Terminal Blocks and Cable Connectors EN)
- Brochures (Katko ConnectSafe Tuoteluettelo - Liittimet ja Kojeliittimet FI)
- Installation manuals (KATKO_ConnectSafe_KKL_installation_manual_93_en.pdf)
- Product lifecycle manual (KATKO_Product_Lifecycle_Manual_EN)
