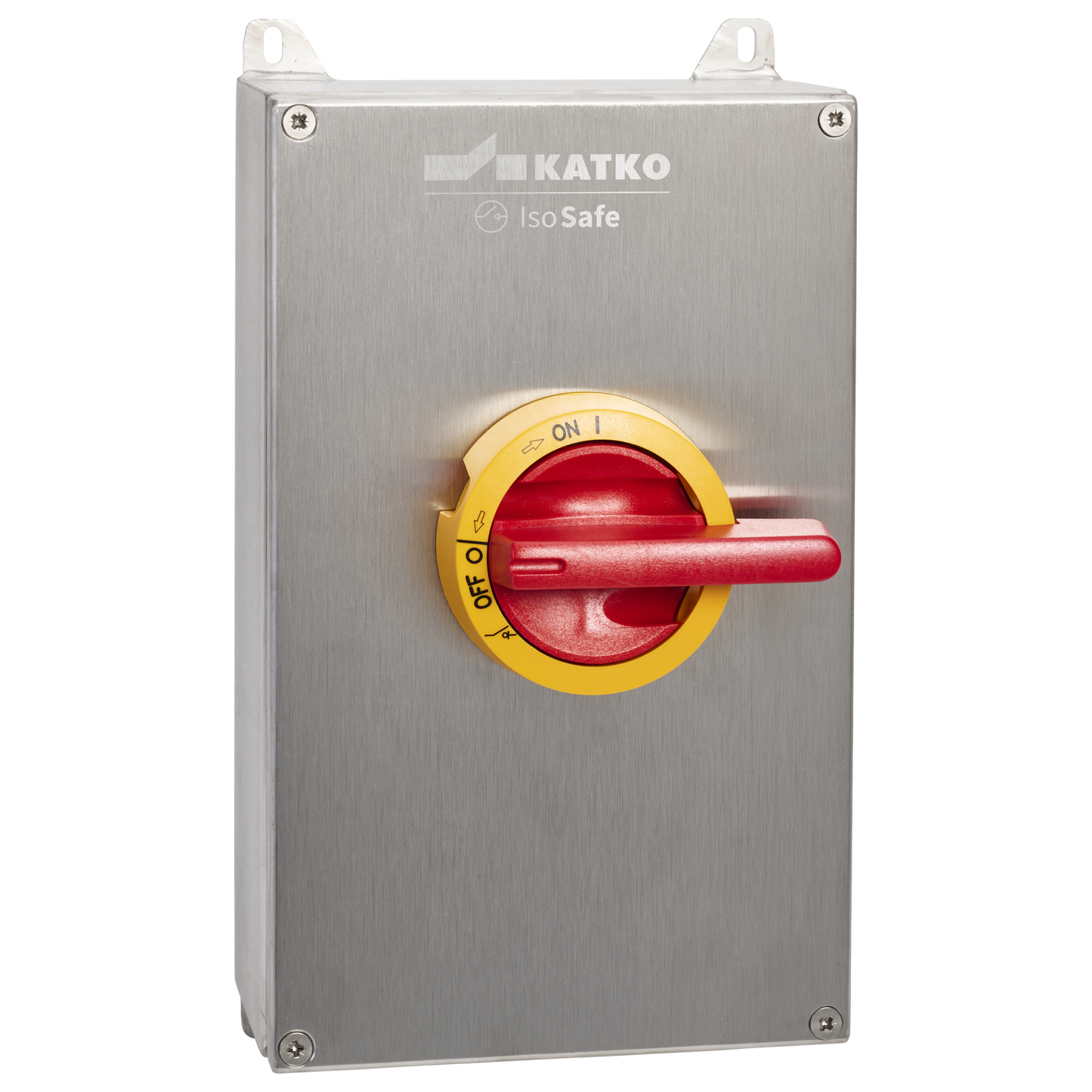

KKVR 332CCUL YR RA4

KKVR 332CCUL YR RA4

KKVR 332CCUL YR RA4

Rated operational current AC-22A 415V (A)
32
Rated operational current AC-22A 690V (A)
32
Enclosure
RA4
View full details

Product details and documents

Technical data

Ampere rating 600V
32.0
Depth
90 mm
Enclosure
RA4
ETIM Class
EC001040
GTIN
6419410377710
Height
260 mm
HP 208V
7.5
HP 240V
0.0
HP 415V
7.5
HP 480V
20.0
HP 600V
15.0
Net weight
2.6068 kg
Nom. values w/cable size (mm²)
6
Number of poles
3
Product type
KKVR 332CCUL YR RA4
Rated breaking cap. ICN AC-23A 415V (A)
256
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated insulation volt. Ui (V)
600
Rated operational current AC-21A 415V (A)
32
Rated operational current AC-21A 500V (A)
32
Rated operational current AC-21A 690V (A)
32
Rated operational current AC-22A 415V (A)
32
Rated operational current AC-22A 500V (A)
32
Rated operational current AC-22A 690V (A)
32
Rated operational current AC-23A 415V (A)
32
Rated operational current AC-23A 500V (A)
32
Rated operational current AC-23A 690V (A)
32
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
22
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
30
Rated therm. current Ithe (A)
30
Rated therm. current Ith (A)
30
Switch type
Switch Fuse
Technical name
3x32 400V 15kW
UL
UL 60947-4-1A
Volume
3.744 l
Width
160 mm
Wire size Cu
14-8 AWG

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
90 mm
Package size 1 GTIN code
6.41941e+12
Package size 1 height
260 mm
Package size 1 volume
3.744 l
Package size 1 weight
2.6068 kg
Package size 1 width
160 mm
Sales unit
1
