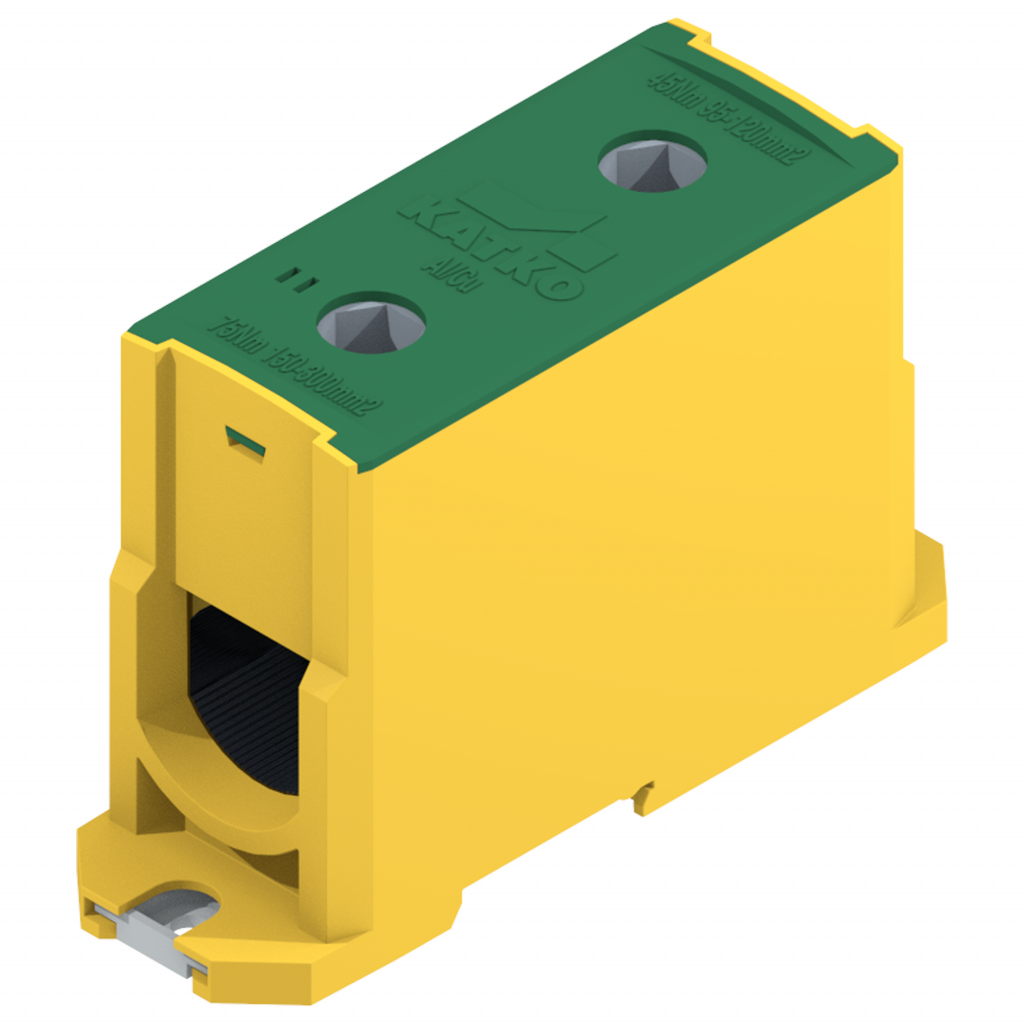

Terminal block KL 1xAl/Cu 95-300mm2 Yellow/Green

KL1X300PE

Terminal block KL 1xAl/Cu 95-300mm2 Yellow/Green

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.

E-number FI
In Cu
520
In Al
400
View full details

Product details and documents

Technical data

Depth
83.5 mm
ETIM Class
EC000897
E-number FI
1942126
GTIN
6419410378816
Height
109 mm
In Al
400.0
In Cu
520.0
Key size
Hex 12
Net weight
0.6576 kg
Product type
KL1X300PE
Short product description
Terminal block KL 1xAl/Cu 95-300mm2 Yellow/Green
Torque Al/Cu (Nm)
45 (95-120 mm²) / 75 (150-300 mm²)
Volume
0.4005 l
Width
44 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Downloadables

    No downloadable files available for this product.
