Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.
Technical data
Al (mm²)
6-95
Cu (mm²)
6-95
Depth
49 mm
ETIM Class
EC000897
E-number FI
1942143
GTIN
6419410205693
Height
62.3 mm
In Al
200.0
In Cu
245.0
Key size
Hex 6
Net weight
0.1998 kg
Nominal voltage
1000V AC / 1500V DC
Product type
KL3X1X95PE
Short product description

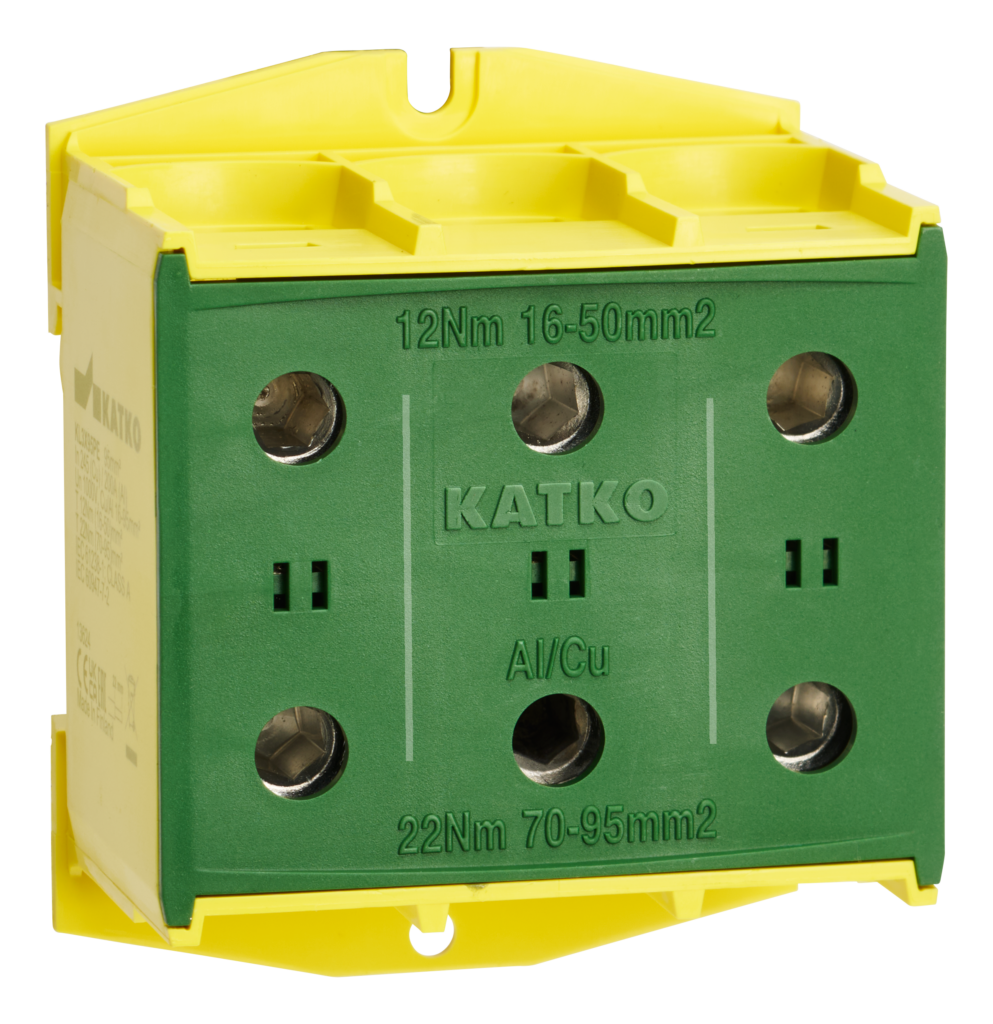

Terminal block KL 3x1xAl/Cu 6-95mm2 Yellow/Green
Torque Al/Cu (Nm)
12 (16 - 50 mm²) / 22 (70 - 95 mm²)
Volume
0.2045 l
Width
67 mm
Dimensional drawing
Logistical data
Package size 1
6
Package size 1 GTIN code
6419410205693
Package size 1 weight
0.1998 kg
Downloadables
- Dimensional drawings media (ConnectSafe_KL3X1X95_Dim.png)
- Brochures (Katko ConnectSafe Catalogue - Terminal Blocks and Cable Connectors EN)
- Brochures (Katko ConnectSafe Tuoteluettelo - Liittimet ja Kojeliittimet FI)
- Installation manuals (KATKO_ConnectSafe_KL_range_installation_manual_79_en.pdf)
- Installation manuals (KATKO_ConnectSafe_KL_range_installation_manual_79_fi.pdf)
