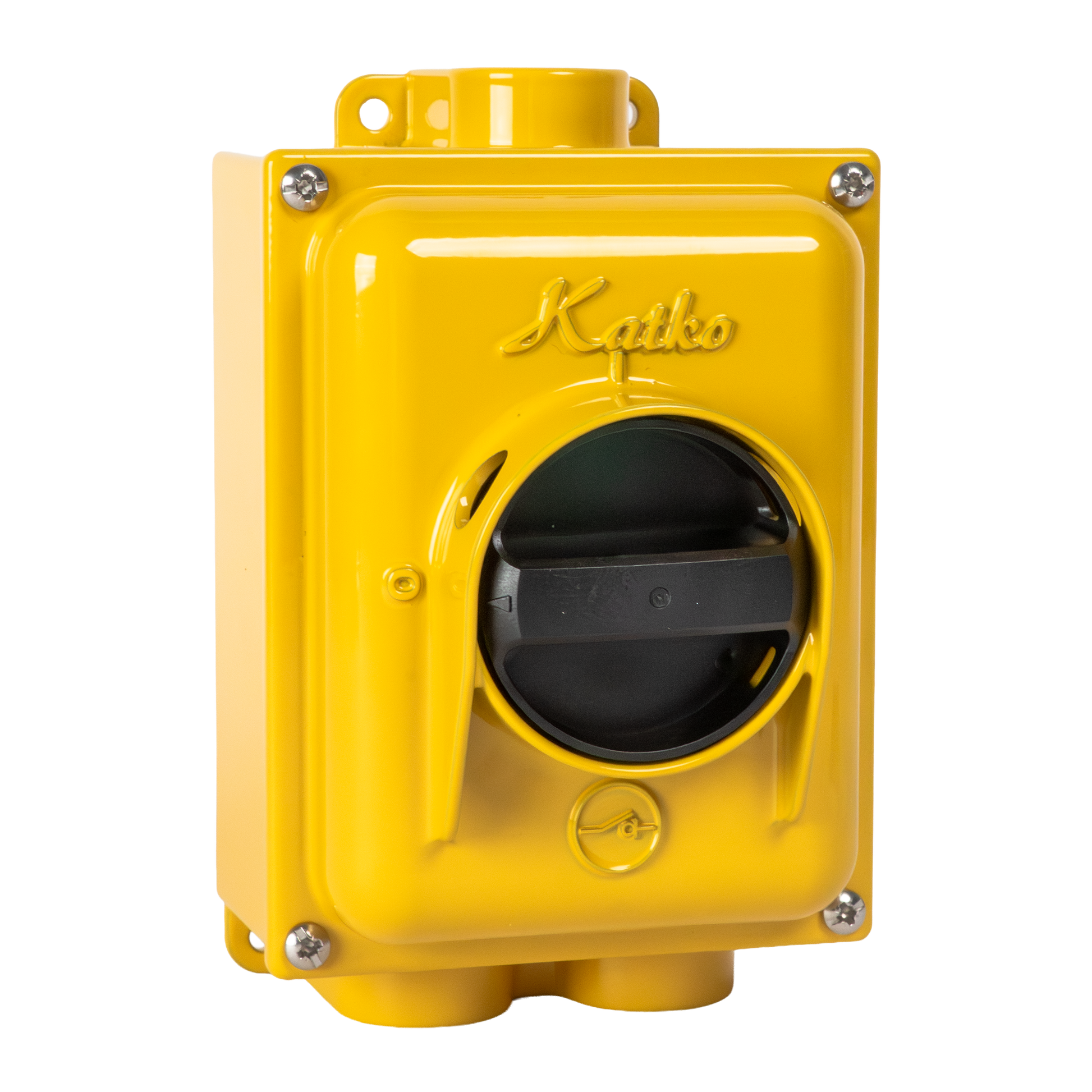

KLA ISF 325 RAL 1004

Classic Design Isolating Switch 3x25A IP66

KLA ISF 325 RAL 1004

KATKO Classic safety switches combine historical design with modern electrical performance. Manufactured from recycled aluminium in the Nordics, they offer timeless design, high quality, and a long service life for projects where authentic material character is valued. An ideal choice for renovation, restoration, and heritage preservation projects, as well as new-build developments with demanding architectural requirements. The range is available in several colours inspired by historical shades, and products can also be supplied in custom colours when required.

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

GTIN
6419410376928
Depth
99 mm
EMC
false
Enclosure
Classic
Enclosure type
Aluminium
ETIM Class
EC000216
Height
160 mm
IP rating
IP66
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
KLA ISF 325 RAL 1004
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated breaking cap. ICN AC-23A 500V (A)
200
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
25
Rated fused short-ckt current peak value (kA)
3.8
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-22A 500V (A)
25
Rated operational current AC-22A 690V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated operational current AC-23A 500V (A)
25
Rated operational current AC-23A 690V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Classic Design Isolating Switch 3x25A IP66
Switch type
Load Break Switch
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.6474 l
Width
104 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
99 mm
Package size 1 GTIN code
6419410376928
Package size 1 height
144 mm
Package size 1 width
104 mm
Sales unit
1
