E-number FI
Technical data
Depth
78 mm
ETIM Class
EC000897
E-number FI
1942118
GTIN
6419410358597
Height
60 mm
Key size
Hex 19
Line load wire size
2 x 500 - 3/0
Net weight
0.4795 kg
Product type

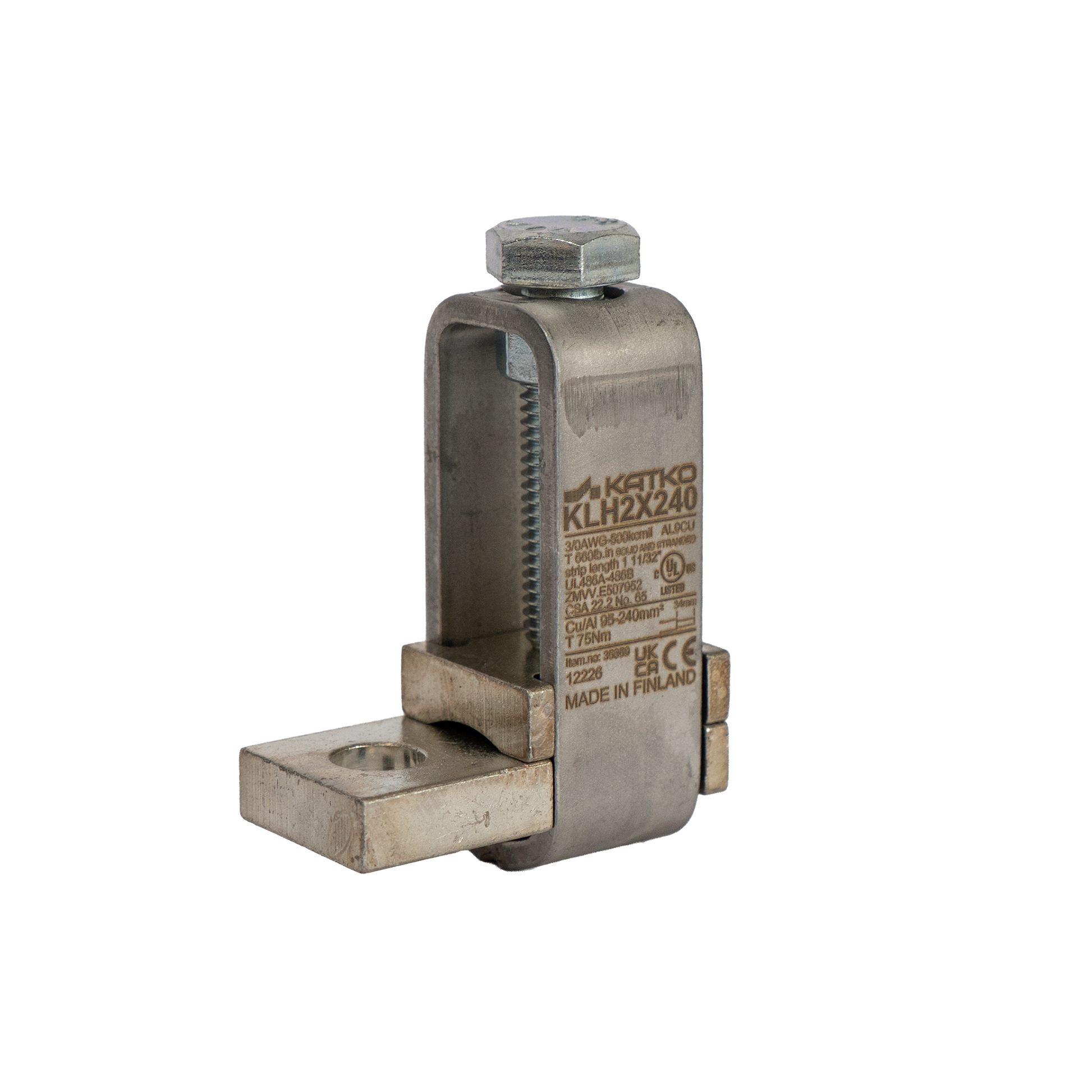

KLH2X240
Torque Al/Cu (lb-in)
660
Torque Al/Cu (Nm)
75
UL
UL 486A-486B
Volume
0.1404 l
Width
30 mm
Dimensional drawing
Logistical data
