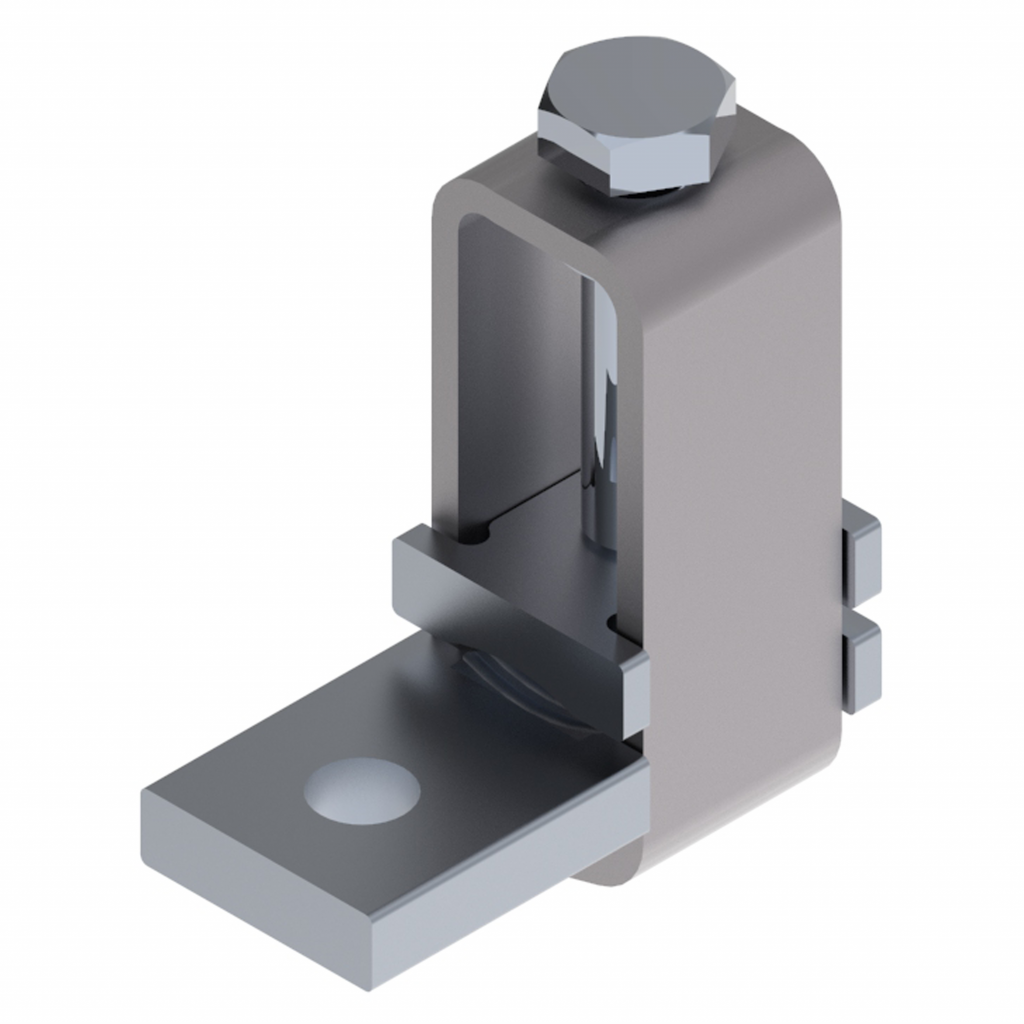

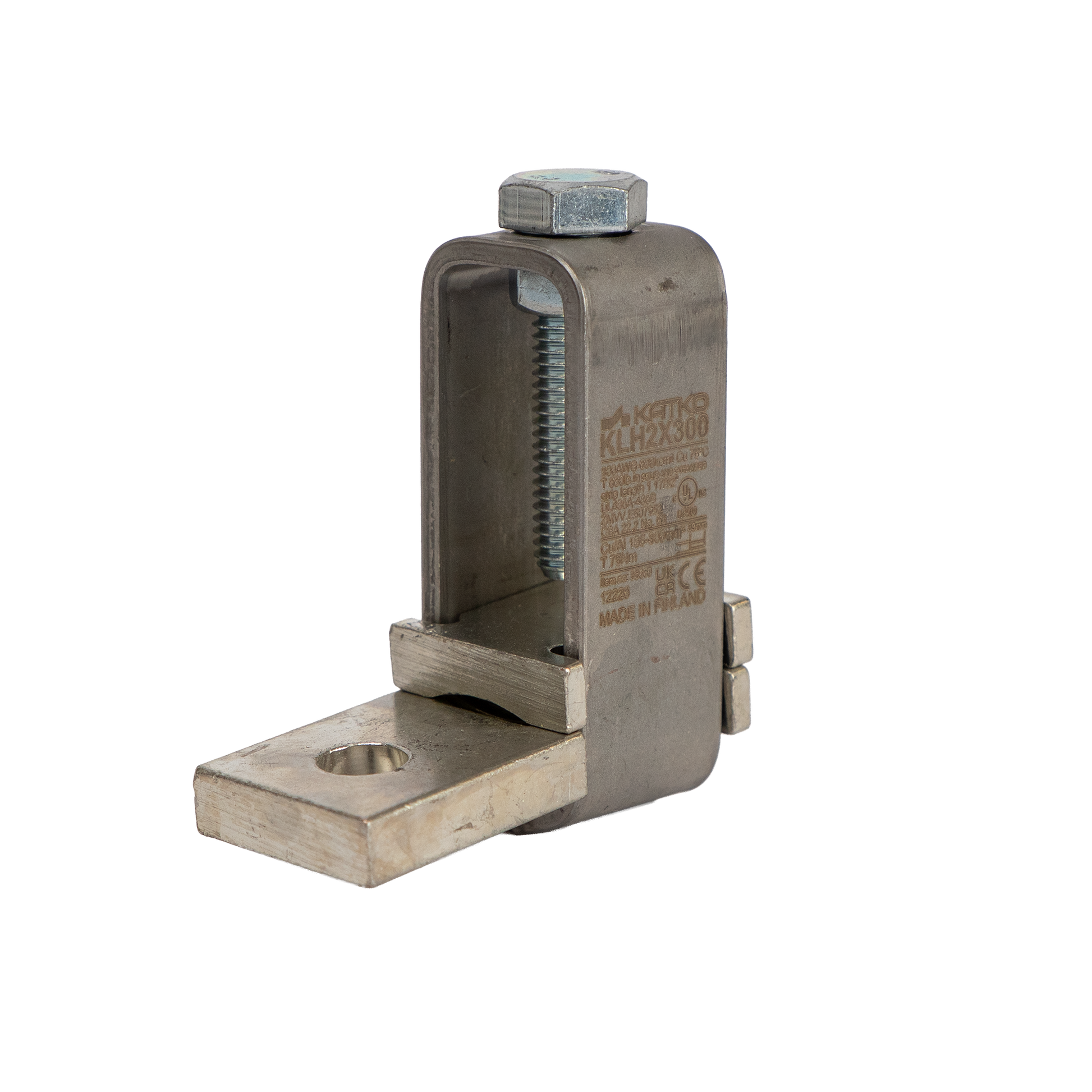

KLH2X300

KLH2X300

Katko ConnectSafe cable connectors are designed for the safe and reliable termination of cables in control and distribution panels. They ensure a durable and dependable electrical connection that withstands everyday use and meets the requirements of professional installations. The compact design saves space, while the wide conductor cross-section range makes the terminals a versatile solution for a variety of applications.

E-number FI
1942119
Cu (mm²)
2 x 185-300
Al (mm²)
2 x 185-300

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Al (mm²)
2 x 185-300
Cu (mm²)
2 x 185-300
Depth
85 mm
ETIM Class
EC000897
E-number FI
1942119
GTIN
6419410358603
Height
77 mm
Key size
Hex 19
Line load wire size
2 x 600 - 300
Net weight
0.6587 kg
Product type
KLH2X300
Torque Al/Cu (lb-in)
660
Torque Al/Cu (Nm)
75
UL
UL 486A-486B
Volume
0.2291 l
Width
35 mm

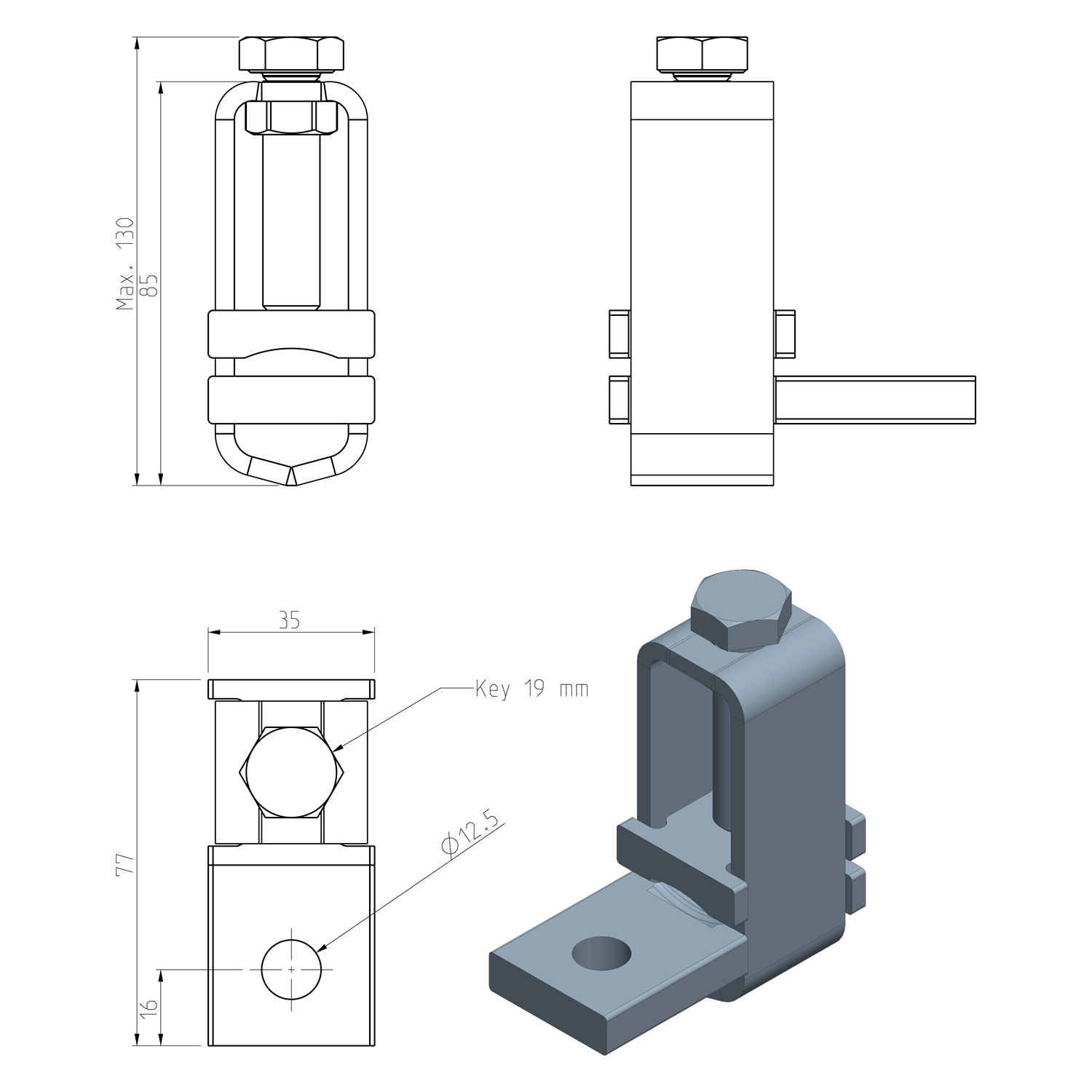

Dimensional drawing

Logistical data

Package size 1
3
Package size 1 GTIN code
6419410358603
Package size 1 weight
0.6587 kg
