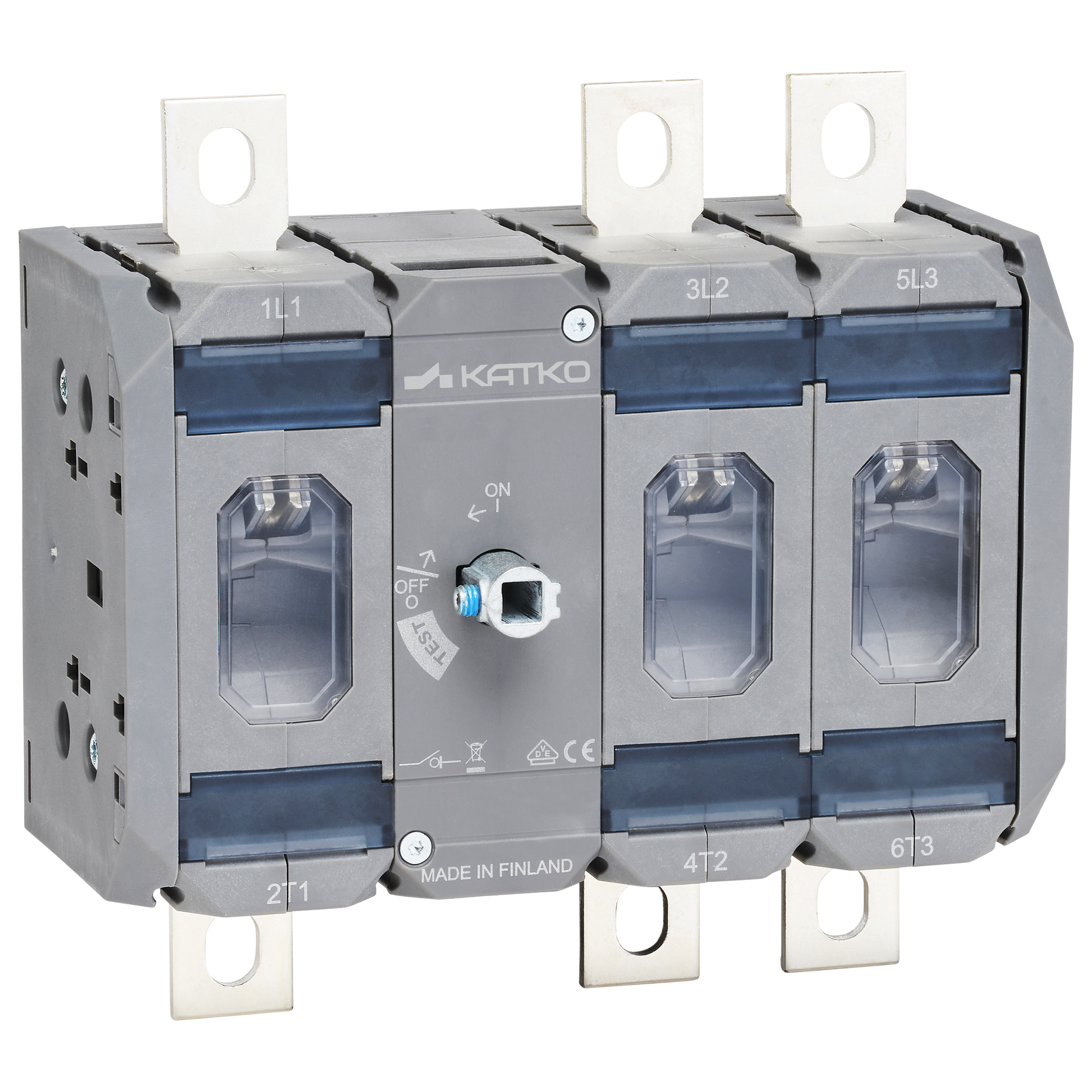

Load break switch 3x200A UL98-listed

KU 3200UL98

Load break switch 3x200A UL98-listed

Katko UL 98 listed load break switches 200A are modular solutions designed for safe and reliable load switching in demanding industrial and power distribution applications. Rated up to 200A, they provide clear disconnection and dependable operation where compliance and operational safety are essential.

The switches feature silver contact technology, visible contacts for easy inspection and a lockable OFF position to enhance safety. Tested and certified according to UL 98 requirements, switches deliver consistent performance in critical North American installations.

GTIN
6419410352786
View full details

Product details and documents

Technical data

ETIM Class
EC000216
GTIN
6419410352786
Long product name
UL98-listed,Rotary switch, 3-pole
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Nom. values w/cable size (mm²)
95
Number of poles
3
Product type
KU 3200UL98
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated breaking cap. ICN AC-23A 500V (A)
1600
Rated breaking cap. ICN AC-23A 690V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 500V (A)
200
Rated operational current AC-22A 690V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated operational current AC-23A 500V (A)
200
Rated operational current AC-23A 690V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
160
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ith (A)
250
Short product description
Load break switch 3x200A UL98-listed
Switch type
Load Break Switch
Technical name
3x200A 690V AC-22
Terminals bolt size (Cu mm²)
M8
UL
UL98

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 GTIN code
6419410352786
Sales unit
1
