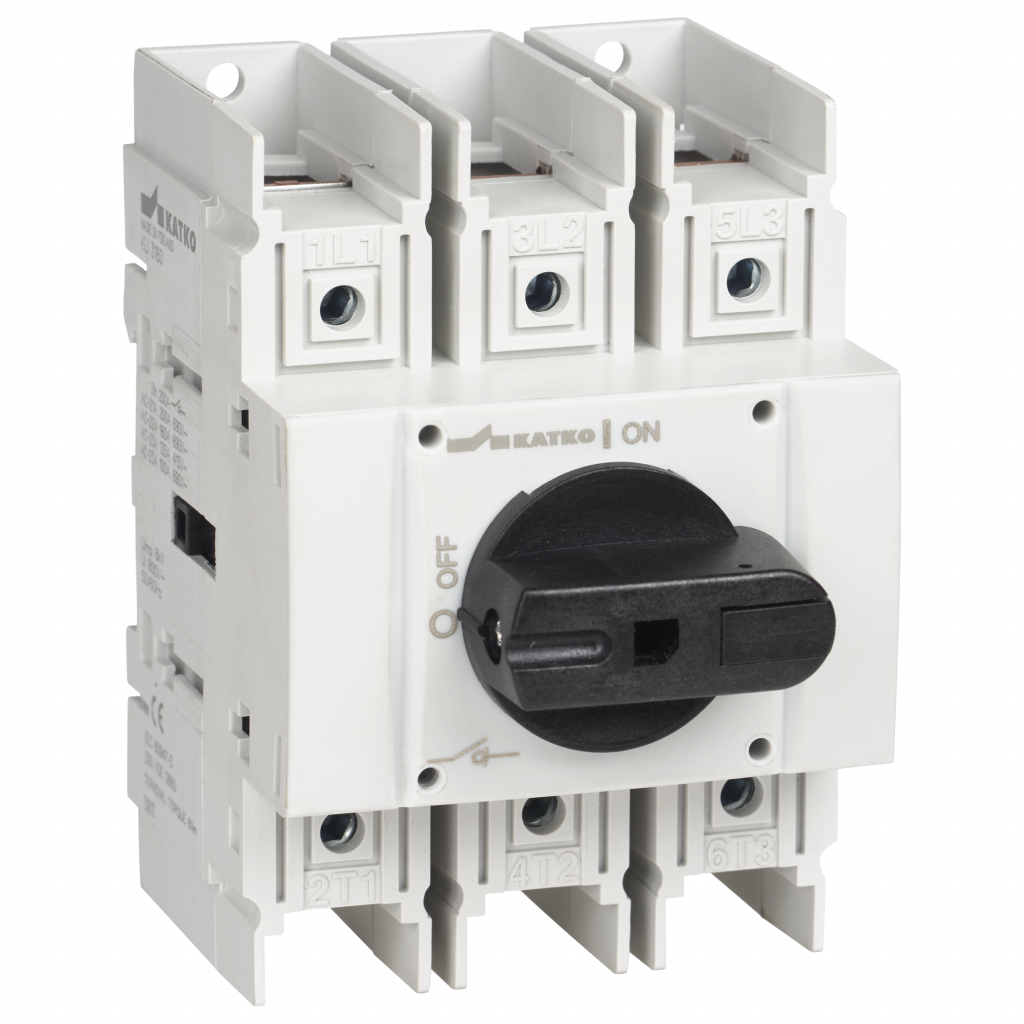

Load break switch 3x30A UL98-listed

KU 330UL98

Load break switch 3x30A UL98-listed

Katko UL 98 listed load break switches 30–100A are modular solutions for safe and reliable load switching in industrial and building installations. Designed for 600 VAC applications, they provide clear disconnection and dependable operation where compliance and safety are essential.

The switches feature silver contact technology, operator-independent switching speed and a lockable OFF position to enhance safety. With high short-circuit withstand capability and UL 98 certification, these load break switches deliver reliable performance in demanding North American applications.

GTIN
6419410325827
Ampere rating 600V
30
HP 600V
50
View full details

Product details and documents

Technical data

Ampere rating 600V
30.0
Depth
87 mm
ETIM Class
EC000216
GTIN
6419410325827
Height
100 mm
HP 240V
15.0
HP 480V
30.0
HP 600V
50.0
Long product name
UL98-listed,Rotary switch, 3-pole
Net weight
0.32 kg
Number of poles
3
Product type
KU 330UL98
Short product description
Load break switch 3x30A UL98-listed
Technical name
3x32A 400V 11kW
UL
UL98
Volume
0.609 l
Width
70 mm
Wire size Cu
14-1/0 AWG

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
87 mm
Package size 1 GTIN code
6419410325827
Package size 1 height
100 mm
Package size 1 volume
0.7569 l
Package size 1 weight
0.316 kg
Package size 1 width
87 mm
Sales unit
1

Downloadables

    No downloadable files available for this product.
