KU 3315 SV

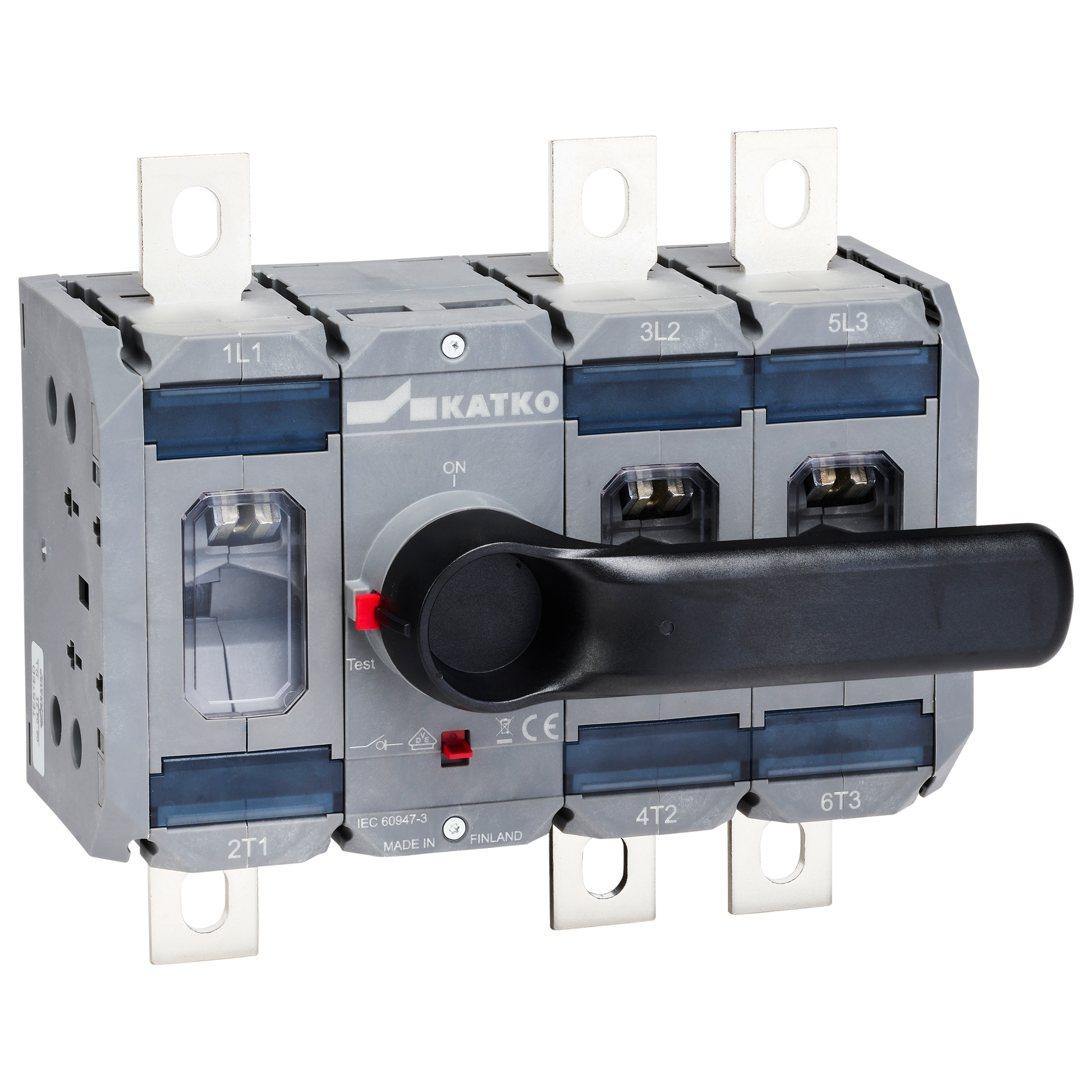

Load break switch 3x315A with direct handle

KU 3315 SV

Katko LoadSafe load break switches 160–800A are high-capacity solutions built for demanding industrial and power distribution networks up to 800 A. They support heavy-duty load switching, motor isolation and backup power transfer applications. These switches are engineered for reliability and durability, ensuring dependable operation where continuity and performance matter most.

E-number FI
3602935
GTIN
6419410300282
Rated operational current AC-22A 415V (A)
315
Rated operational current AC-22A 690V (A)
315

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Depth
185 mm
ETIM Class
EC000216
E-number FI
3602935
GTIN
6419410300282
Height
100 mm
Long product name
Rotary switch, 3-pole, Includes direct handle mechanism
Max. term. torque (Nm)
30..44
Mech. endurance (no. of oper.)
10000
Net weight
2.5422 kg
Nom. values w/cable size (mm²)
185
Number of poles
3
Product type
KU 3315 SV
Rated breaking cap. ICN AC-23A 415V (A)
2520
Rated breaking cap. ICN AC-23A 500V (A)
2520
Rated breaking cap. ICN AC-23A 690V (A)
2520
Rated fused short-ckt current back-up fuse opt 1 (A)
400
Rated fused short-ckt current peak value (kA)
42
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
315
Rated operational current AC-21A 500V (A)
315
Rated operational current AC-21A 690V (A)
315
Rated operational current AC-22A 415V (A)
315
Rated operational current AC-22A 500V (A)
315
Rated operational current AC-22A 690V (A)
315
Rated operational current AC-23A 415V (A)
315
Rated operational current AC-23A 500V (A)
315
Rated operational current AC-23A 690V (A)
315
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
160
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
315
Rated short-ckt. making cap. Icm 690V (kA)
27.5
Rated short-time withstand current 1s Icw 1000V (kA)
13.5
Rated therm. current Ith (A)
315
Short product description
Load break switch 3x315A with direct handle
Switch type
Load Break Switch
Technical name
3x315A 690V AC-22
Terminals bolt size (Cu mm²)
M10
Volume
3.774 l
Width
204 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
185 mm
Package size 1 GTIN code
6419410300282
Package size 1 height
100 mm
Package size 1 volume
3.4225 l
Package size 1 weight
2.5422 kg
Package size 1 width
185 mm
Sales unit
1
