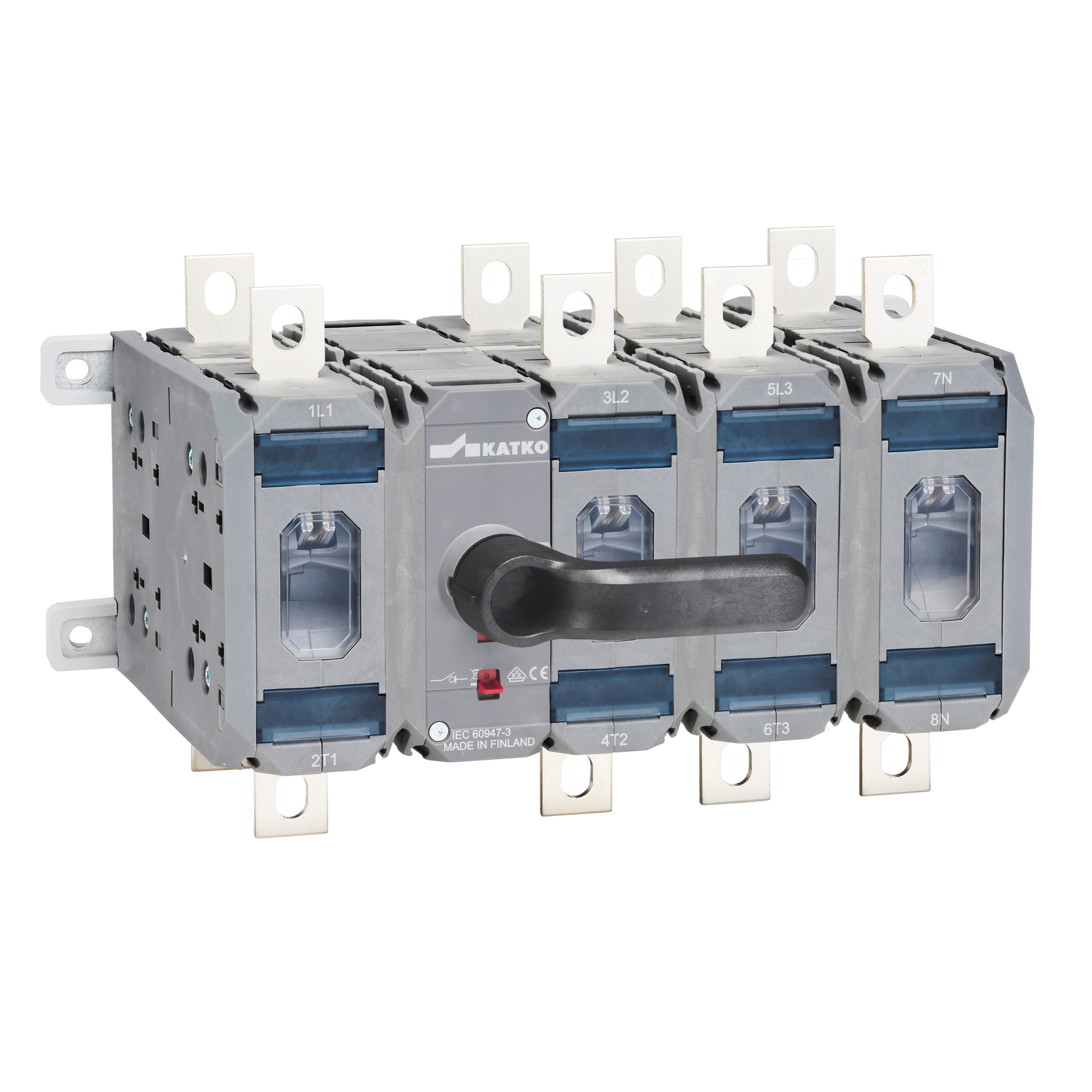

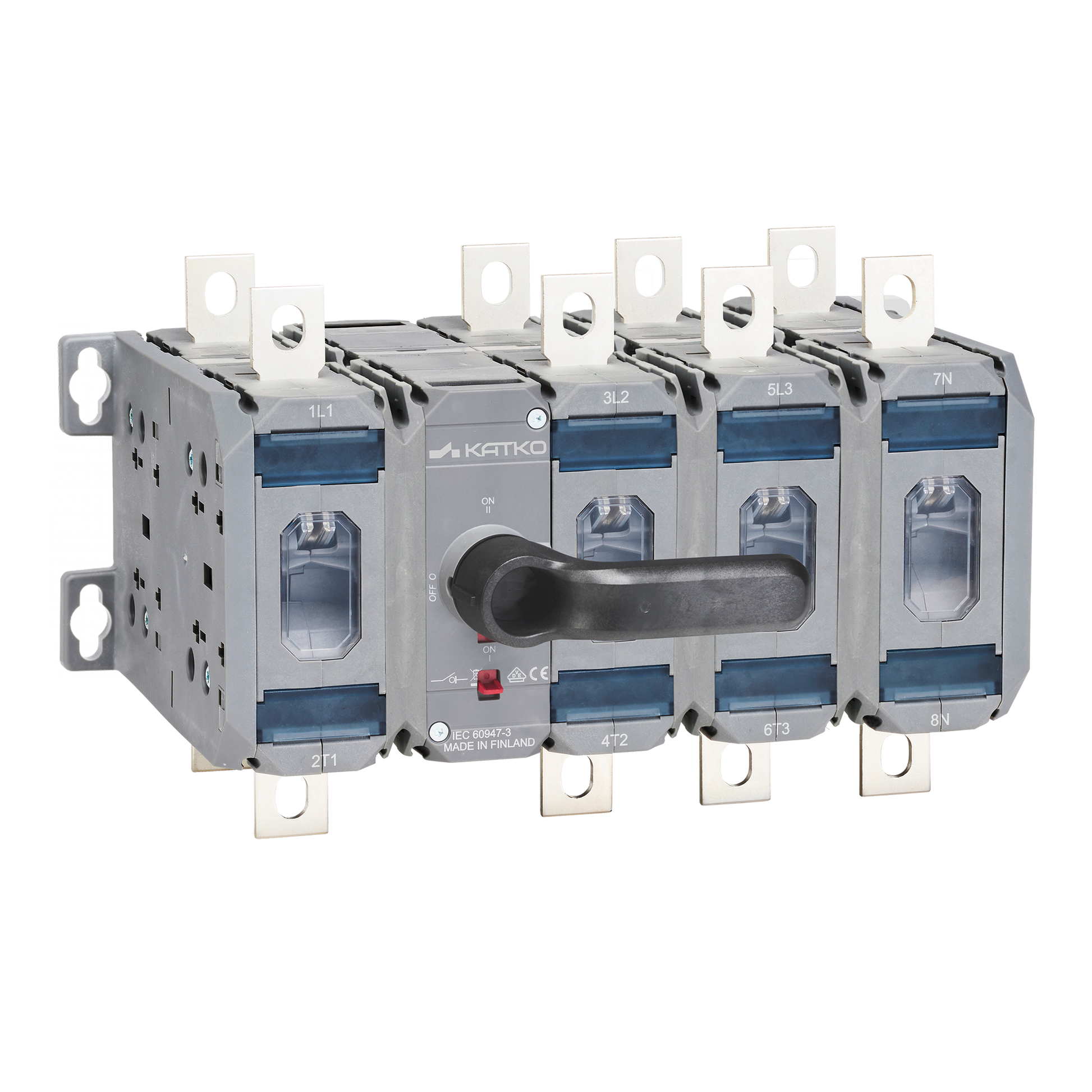

KU 4250WCO SV

Change-over switch 1-0-2 4x250A with direct handle

KU 4250WCO SV

Katko LoadSafe changeover switches 160–800A are high-capacity solutions designed for demanding industrial and power distribution applications where continuity of supply is critical. They support reliable switching between power sources in high-current systems.

Built for durability and long-term performance, these switches deliver dependable operation in installations where safety, reliability and uptime cannot be compromised.

Product Number
20538
E-number FI
3609215
GTIN
6419410205389
Rated operational current AC-22A 415V (A)
250
Rated operational current AC-22A 690V (A)
250
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

delivery_time
10
Depth
150 mm
ETIM Class
EC000216
E-number FI
3609215
GTIN
6419410205389
Height
193 mm
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
4.2262 kg
Nom. values w/cable size (mm²)
120
Number of poles
4
Product type
KU 4250WCO SV
Rated breaking cap. ICN AC-23A 415V (A)
2000
Rated breaking cap. ICN AC-23A 500V (A)
2000
Rated breaking cap. ICN AC-23A 690V (A)
2000
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
250
Rated operational current AC-21A 500V (A)
250
Rated operational current AC-21A 690V (A)
250
Rated operational current AC-22A 415V (A)
250
Rated operational current AC-22A 500V (A)
250
Rated operational current AC-22A 690V (A)
250
Rated operational current AC-22A 800V (A)
250
Rated operational current AC-23A 1000V (A)
135
Rated operational current AC-23A 415V (A)
250
Rated operational current AC-23A 500V (A)
250
Rated operational current AC-23A 690V (A)
250
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
160
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
250
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ith (A)
315
Short product description
Change-over switch 1-0-2 4x250A with direct handle
Switch type
Load Break Switch
Technical name
4x250A 690V AC-22
Terminals bolt size (Cu mm²)
M8
Volume
5.5584 l
Width
192 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
150 mm
Package size 1 GTIN code
6419410205389
Package size 1 height
193 mm
Package size 1 volume
4.3425 l
Package size 1 weight
4.2262 kg
Package size 1 width
150 mm
Sales unit
1
