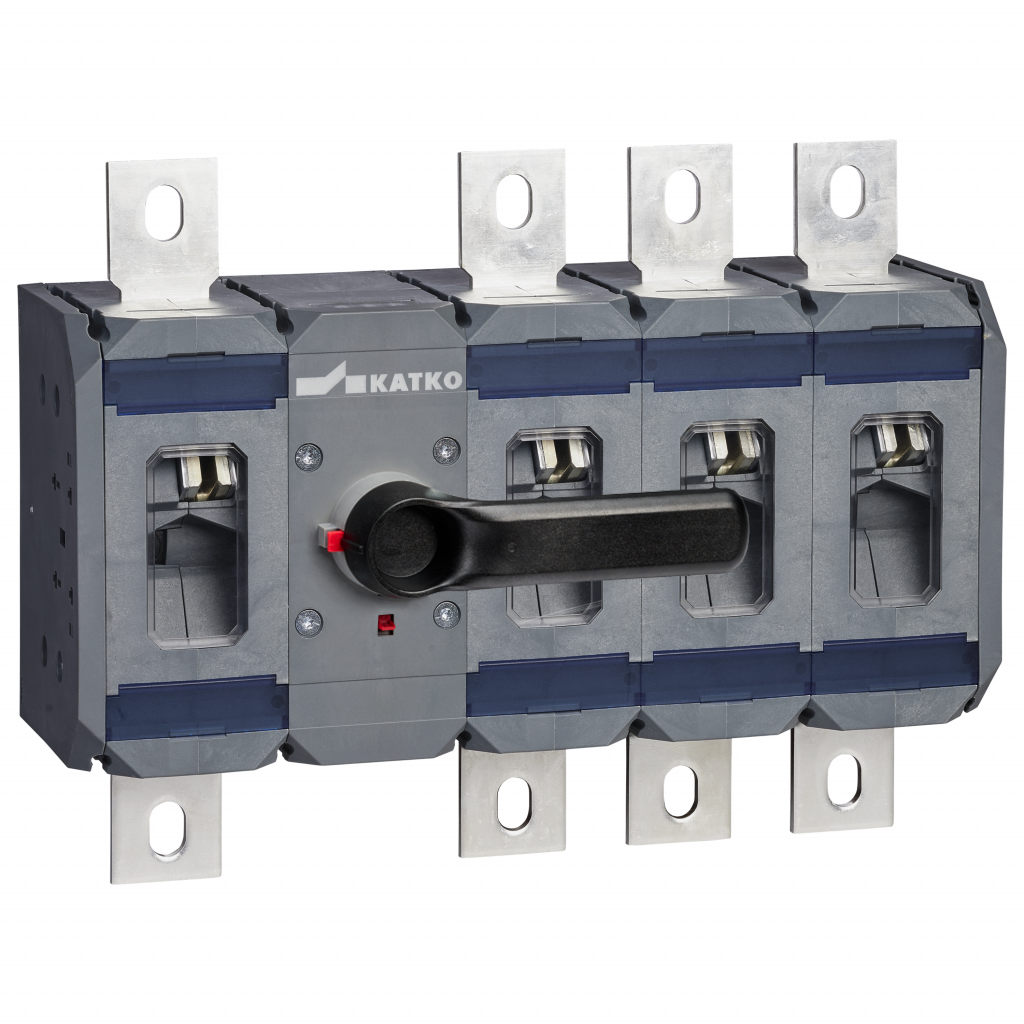

Load break switch 4x630A with direct handle

KU 4630 SV

Load break switch 4x630A with direct handle

Katko LoadSafe load break switches 160–800A are high-capacity solutions built for demanding industrial and power distribution networks up to 800 A. They support heavy-duty load switching, motor isolation and backup power transfer applications. These switches are engineered for reliability and durability, ensuring dependable operation where continuity and performance matter most.

E-number FI
3602885
GTIN
6419410484012
Rated operational current AC-22A 415V (A)
630
Rated operational current AC-22A 690V (A)
630
View full details

Product details and documents

Technical data

Depth
366 mm
ETIM Class
EC000216
E-number FI
3602885
GTIN
6419410484012
Height
155 mm
Long product name
Rotary switch, 4-pole, Includes direct handle mechanism
Max. term. torque (Nm)
50..75
Mech. endurance (no. of oper.)
10000
Net weight
2.51 kg
Nom. values w/cable size (mm²)
2*185
Number of poles
4
Product type
KU 4630 SV
Rated breaking cap. ICN AC-23A 415V (A)
5040
Rated breaking cap. ICN AC-23A 500V (A)
5040
Rated breaking cap. ICN AC-23A 690V (A)
5040
Rated fused short-ckt current back-up fuse opt 1 (A)
800
Rated fused short-ckt current peak value (kA)
76
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
630
Rated operational current AC-21A 500V (A)
630
Rated operational current AC-21A 690V (A)
630
Rated operational current AC-22A 415V (A)
630
Rated operational current AC-22A 500V (A)
630
Rated operational current AC-22A 690V (A)
630
Rated operational current AC-23A 240V (A)
630
Rated operational current AC-23A 415V (A)
630
Rated operational current AC-23A 500V (A)
630
Rated operational current AC-23A 690V (A)
630
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
355
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
400
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
630
Rated short-ckt. making cap. Icm 690V (kA)
60
Rated short-time withstand current 1s Icw 1000V (kA)
28
Rated therm. current Ith (A)
630
Short product description
Load break switch 4x630A with direct handle
Switch type
Load Break Switch
Technical name
4x630A 690V AC-22
Terminals bolt size (Cu mm²)
M12
Volume
14.6931 l
Width
259 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
366 mm
Package size 1 GTIN code
6419410484012
Package size 1 height
155 mm
Package size 1 volume
20.7632 l
Package size 1 weight
2.5108 kg
Package size 1 width
366 mm
Sales unit
1
