Toggle switch 3x80A with power rail adapter

KUE 3125 AD1KKUE

Toggle switch 3x80A with power rail adapter

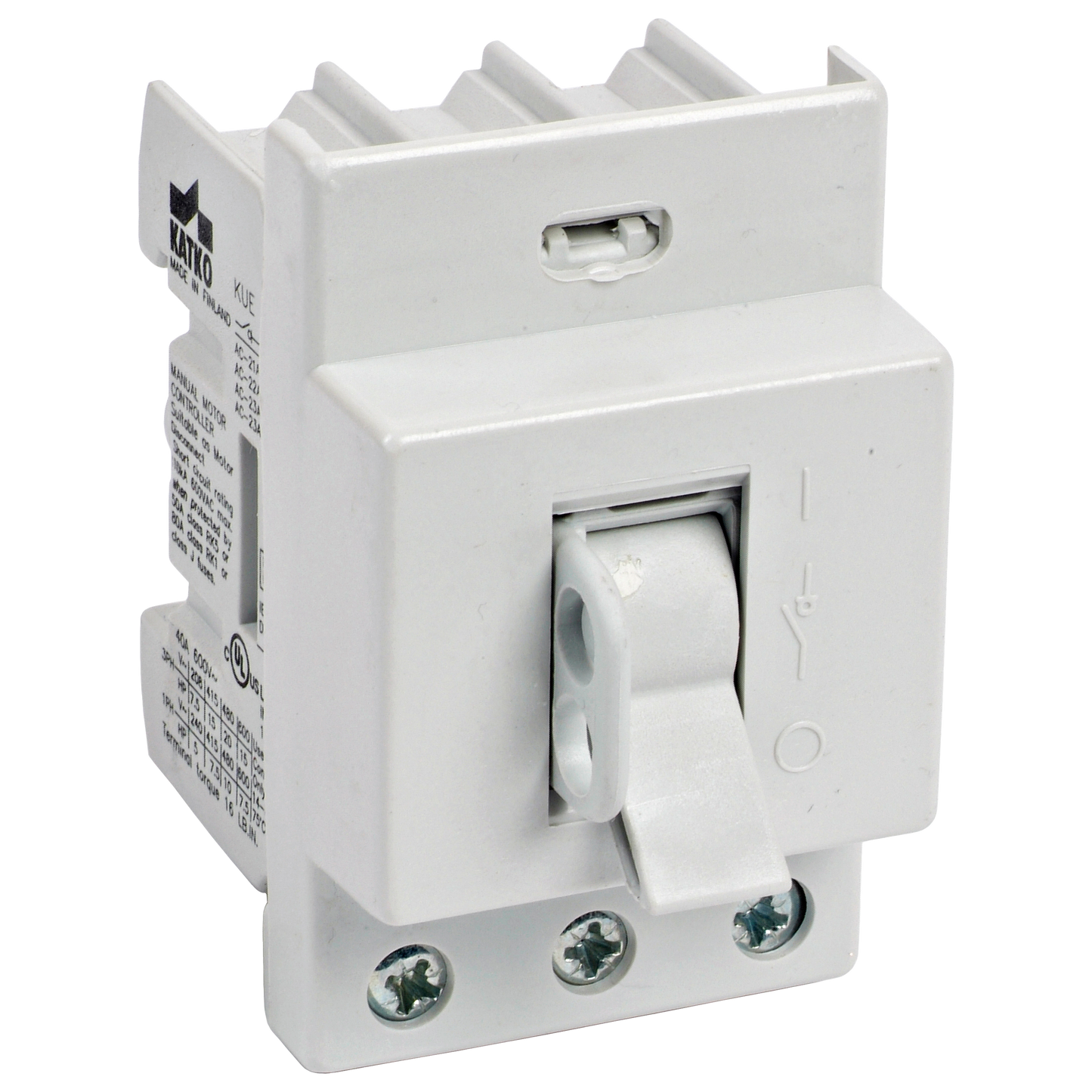

Katko LoadSafe KUE toggle switches 16–125A are compact, 3-pole load break switches designed for clear and dependable load switching in distribution boards and control panels. Their DIN-rail mounting and robust construction make installation straightforward, while switch technology based on silver contacts ensures safe and durable operation.

KUE switches are available with an adapter for connecting to a three-phase section rail, offering three different connection heights for flexible setups.

E-number FI
3635402
GTIN
6419410200834
Rated operational current AC-22A 415V (A)
125
Rated operational current AC-22A 690V (A)
80
View full details

Product details and documents

Technical data

Depth
83 mm
ETIM Class
EC000216
E-number FI
3635402
GTIN
6419410200834
Height
72 mm
Long product name
Toggle switch, 3-pole, Front plate adapter 1,Front plate rectangle
Max. term. torque (Nm)
2.5
Mech. endurance (no. of oper.)
50000
Net weight
0.16 kg
Nom. values w/cable size (mm²)
50
Number of poles
3
Product type
KUE 3125 AD1KKUE
Rated breaking cap. ICN AC-23A 415V (A)
504
Rated breaking cap. ICN AC-23A 500V (A)
320
Rated breaking cap. ICN AC-23A 690V (A)
320
Rated fused short-ckt current back-up fuse opt 1 (A)
125
Rated fused short-ckt current peak value (kA)
10
Rated fused short-ckt current RMS Ik opt 1 (kA)
30
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
125
Rated operational current AC-22A 500V (A)
80
Rated operational current AC-22A 690V (A)
80
Rated operational current AC-23A 415V (A)
63
Rated operational current AC-23A 500V (A)
32
Rated operational current AC-23A 690V (A)
32
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
22
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
30
Rated short-ckt. making cap. Icm 690V (kA)
3.3
Rated short-time withstand current 1s Icw 690V (kA)
2.3
Rated therm. current Ith (A)
125
Short product description
Toggle switch 3x80A with power rail adapter
Switch type
Load Break Switch
Technical name
3x80A 690V AC-22
Terminals bolt size (Cu mm²)
2.5..50
Volume
0.3167 l
Width
53 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
83 mm
Package size 1 GTIN code
6419410200834
Package size 1 height
72 mm
Package size 1 volume
0.496 l
Package size 1 weight
0.1564 kg
Package size 1 width
83 mm
Sales unit
1
