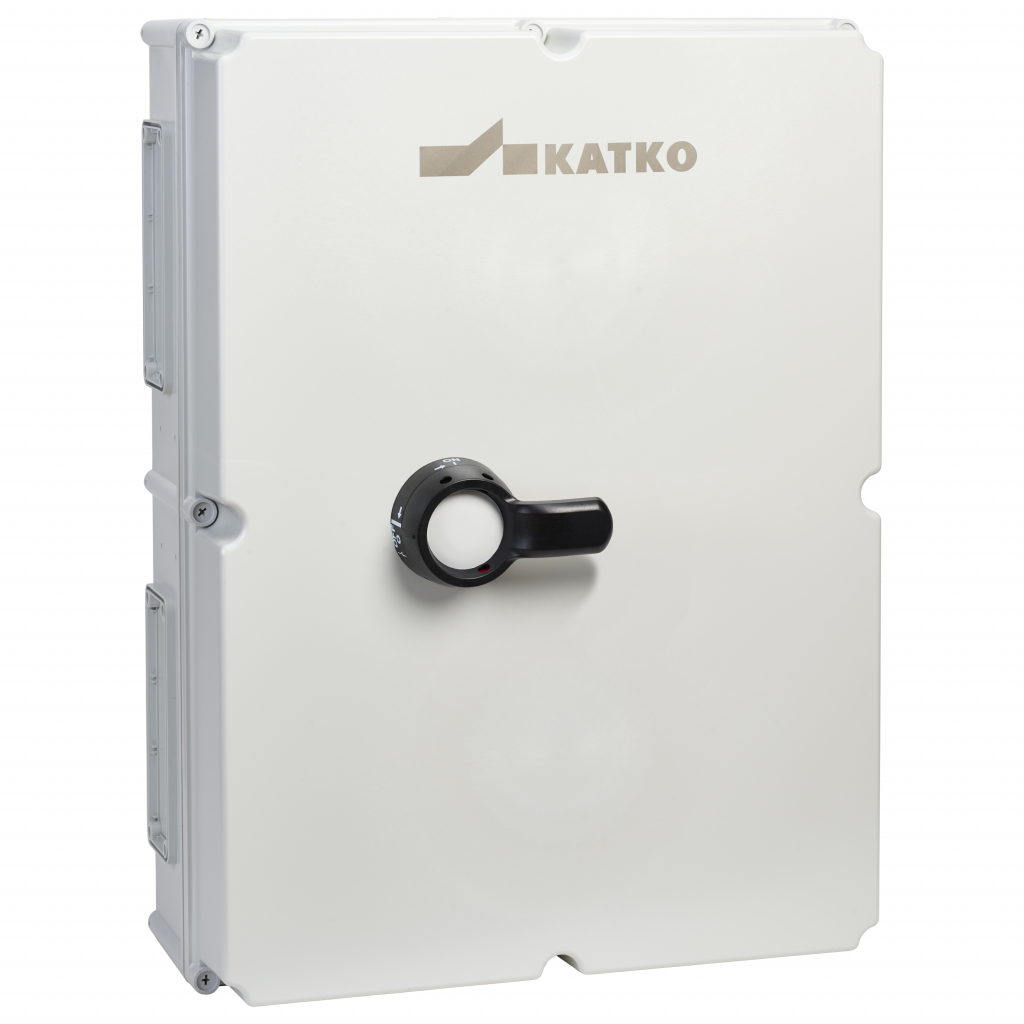

KUM 6200 Y1V MF04 4XM50P M16P

Isolating switch 6x200A IP66 1NO/1NC

KUM 6200 Y1V MF04 4XM50P M16P

Katko IsoSafe polycarbonate enclosed safety switches are designed for real-world applications where safety and reliability are essential, from demanding industrial environments to ordinary buildings. The durable polycarbonate enclosure provides high protection and excellent insulation while resisting UV radiation and many chemicals, ensuring reliable performance both indoors and outdoors.

Advanced safety features, including self-extinguishing materials, secure door interlocking defeat mechanisms and a padlockable handle, support safe operation and maintenance. Designed and manufactured in Finland, IsoSafe switches reflect decades of application-driven engineering and are trusted in installations where dependable electrical distribution is critical.

Product Number
36680
E-number FI
3600640
Rated operational current AC-23A 415V (A)
200
Enclosure type
Polycarbonate
Enclosure
MF04 (560 x 760 x 250 mm)
Mounted auxiliary contacts
1NO/1NC
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Cable entries
4 x M50 (27,0-38,0 mm), plastic; 1 x M16 (5,0-10,0 mm), plastic
delivery_time
10
Depth
250 mm
EMC
false
Enclosure
MF04 (560 x 760 x 250 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3600640
GTIN
6419410366806
Height
760 mm
IP rating
IP66
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Mounted auxiliary contacts
1NO/1NC
Net weight
18.7359 kg
Nom. values w/cable size (mm²)
95
Number of poles
6
Product type
KUM 6200 Y1V MF04 4XM50P M16P
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated breaking cap. ICN AC-23A 500V (A)
1600
Rated breaking cap. ICN AC-23A 690V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 500V (A)
200
Rated operational current AC-22A 690V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated operational current AC-23A 500V (A)
200
Rated operational current AC-23A 690V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
160
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ithe (A)
250
Rated therm. current Ith (A)
250
Short product description
Isolating switch 6x200A IP66 1NO/1NC
Switch type
Load Break Switch
Technical name
6x200A 400V 110kW
Terminals bolt size (Cu mm²)
M8
Volume
106.4 l
Width
560 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
130 mm
Package size 1 GTIN code
6419410366806
Package size 1 height
380 mm
Package size 1 volume
13.832 l
Package size 1 weight
18.7359 kg
Package size 1 width
280 mm
Sales unit
1
