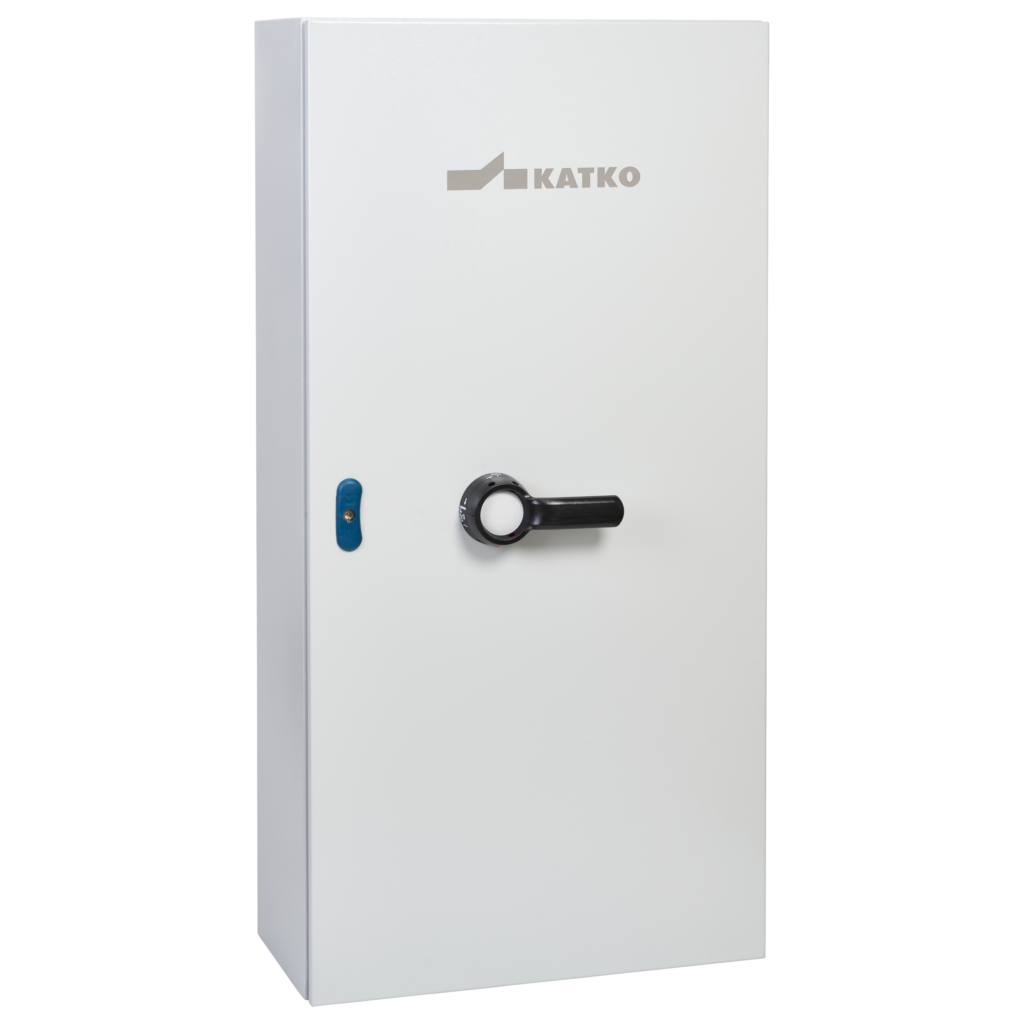

KUT 31000T 1V T10EMC 6XM75MEMC M16M
Isolating switch EMC 3xA IP66 1NO/1NCKUT 31000T 1V T10EMC 6XM75MEMC M16M
Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.
By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.
Technical data
Cable entries
6 x M75 (53,0-64,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Depth
300 mm
EMC
true
Enclosure
T10 (800 x 1200 x 300 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
E-number FI
3662612
GTIN
6419410227039
Height
1200 mm
IP rating
IP66
Mounted auxiliary contacts
1NO/1NC
Net weight
79.0708 kg
Number of poles
3
Product type
KUT 31000T 1V T10EMC 6XM75MEMC M16M
Short product description
Isolating switch EMC 3xA IP66 1NO/1NC
Technical name
3x1000A 400V 560kW
Volume
288 l
Width
800 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
300 mm
Package size 1 GTIN code
6419410227039
Package size 1 height
1200 mm
Package size 1 volume
288 l
Package size 1 weight
79.0708 kg
Package size 1 width
800 mm
Sales unit
1
Downloadables
- Dimensional drawings media (IsoSafe_T10_Dim.png)
- Connection diagram media (KATKO_KU3P_1V_diagram.jpg)
- Brochures (Katko IsoSafe Catalogue - Safety Switches & Isolators)
- Brochures (Katko IsoSafe Tuoteluettelo - Turvakytkimet FI)
- Brochures (Katalog Wyrobów KATKO IsoSafe – Wyłączniki bezpieczeństwa i rozłączniki PL)
- DWG files (IsoSafe_T10_LKX150.zip)
