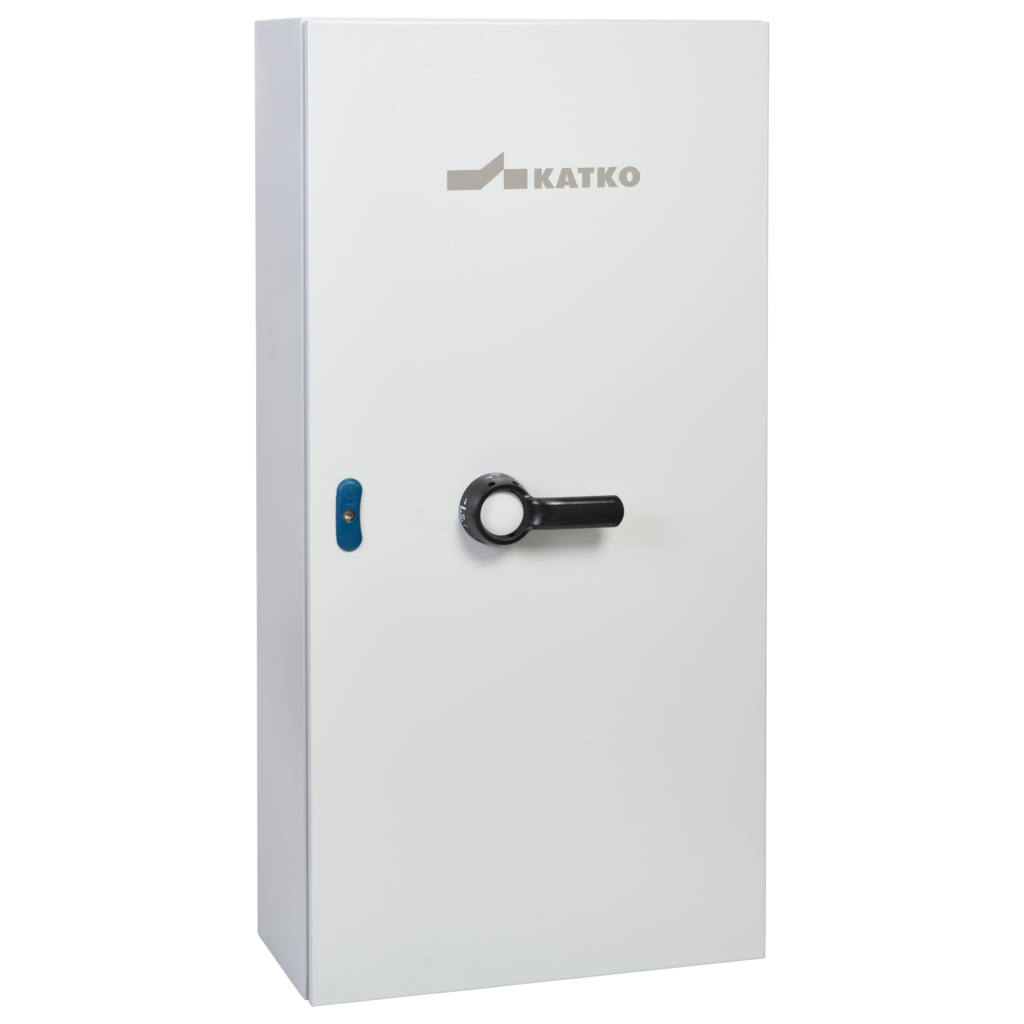

KUT 3800 1V T10AEMC 4XM63LMEMC M16M

Isolating switch EMC 3x800A IP66 1NO/1NC

KUT 3800 1V T10AEMC 4XM63LMEMC M16M

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

Product Number
30308
E-number FI
3600533
Rated operational current AC-23A 415V (A)
800
Enclosure type
Painted sheet steel
Enclosure
T10A (600 x 1200 x 300 mm)
Mounted auxiliary contacts
1NO/1NC
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

GTIN
6419410303085
Cable entries
4 x M63L (37,0-53,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Cover label
aurinkovoimalan_ac_erotuskytkin
Depth
300 mm
EMC
true
Enclosure
T10A (600 x 1200 x 300 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
E-number FI
3600533
Height
1200 mm
IP rating
IP66
Max. term. torque (Nm)
50..75
Mech. endurance (no. of oper.)
10000
Mounted auxiliary contacts
1NO/1NC
Net weight
56.39 kg
Nom. values w/cable size (mm²)
2*300
Number of poles
3
Product type
KUT 3800 1V T10AEMC 4XM63LMEMC M16M
Rated breaking cap. ICN AC-23A 415V (A)
6400
Rated breaking cap. ICN AC-23A 500V (A)
6400
Rated breaking cap. ICN AC-23A 690V (A)
6400
Rated fused short-ckt current back-up fuse opt 1 (A)
800
Rated fused short-ckt current peak value (kA)
76
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
800
Rated operational current AC-21A 500V (A)
800
Rated operational current AC-21A 690V (A)
800
Rated operational current AC-22A 415V (A)
800
Rated operational current AC-22A 500V (A)
800
Rated operational current AC-22A 690V (A)
800
Rated operational current AC-23A 1000V (A)
400
Rated operational current AC-23A 415V (A)
800
Rated operational current AC-23A 500V (A)
800
Rated operational current AC-23A 690V (A)
800
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
400
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
560
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
800
Rated short-ckt. making cap. Icm 690V (kA)
60
Rated short-time withstand current 1s Icw 1000V (kA)
28
Rated therm. current Ithe (A)
800
Rated therm. current Ith (A)
800
Short product description
Isolating switch EMC 3x800A IP66 1NO/1NC
Switch type
Load Break Switch
Technical name
3x800A 400V 400kW
Terminals bolt size (Cu mm²)
M12
Volume
216 l
Width
600 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
300 mm
Package size 1 GTIN code
6419410303085
Package size 1 height
1200 mm
Package size 1 volume
216 l
Package size 1 weight
56.39 kg
Package size 1 width
600 mm
Sales unit
1
