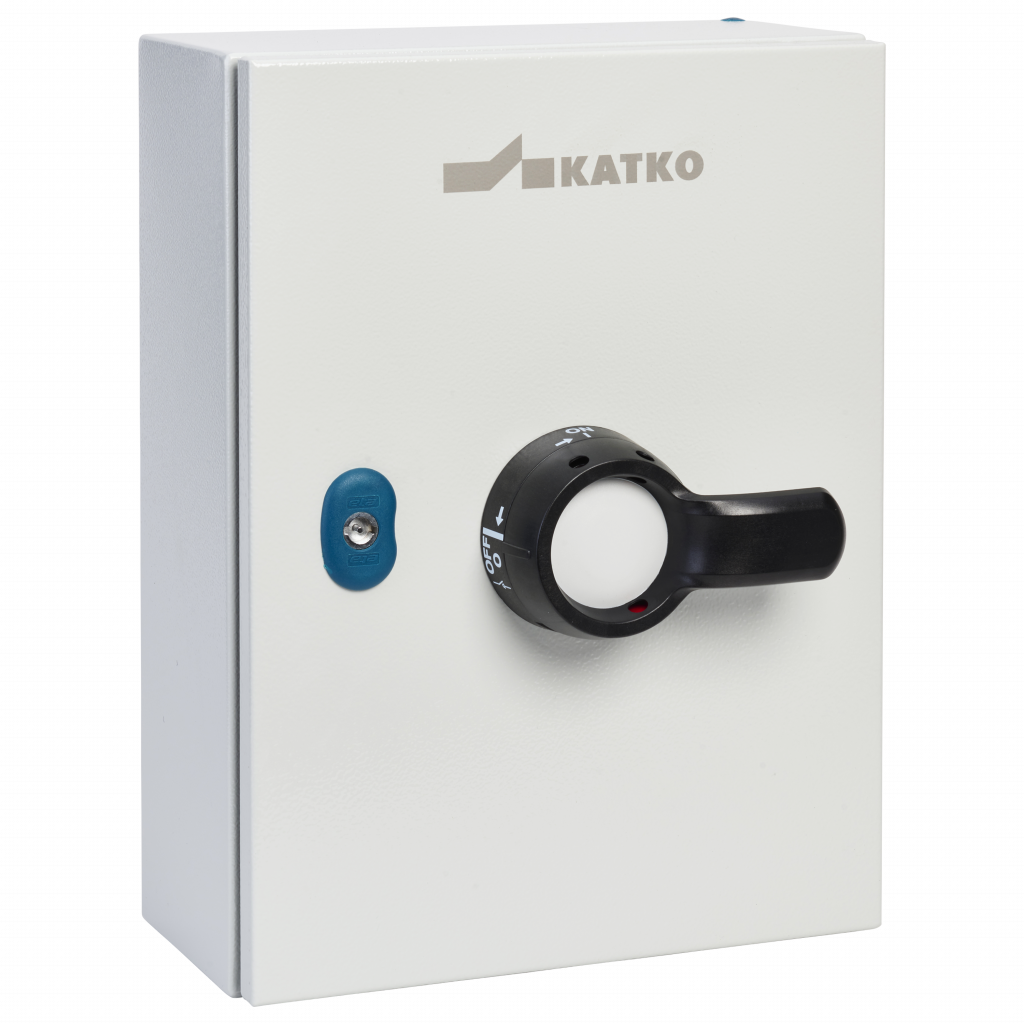

Bypass switch EMC 3x63A IP66

KUT 663 363VV102 2X1V T5EMC 4XM40MEMC M16M

Designed to ensure continuous operation during maintenance or fault situations, Katko bypass switches (16-63A) provide a reliable solution for variable frequency drive (VFD) applications where downtime is not an option. They allow ventilation systems to remain operational while the drive is safely bypassed.

Delivered as enclosed, EMC-protected solutions, these bypass switches support straightforward installation and maintenance. Their robust sheet steel enclosures and optional motor protection make them well suited for demanding ventilation control applications.

E-number FI
3600765
GTIN
6419410311653
Rated operational current AC-23A 415V (A)
63
Enclosure type
Painted sheet steel
Enclosure
T5 (300 x 400 x 150 mm)

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Cable entries
4 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Depth
150 mm
EMC
true
Enclosure
T5 (300 x 400 x 150 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
E-number FI
3600765
GTIN
6419410311653
Height
400 mm
IP rating
IP66
Long product name
3-pole, Sheet steel enclosure; W300 x H400 x D150,EMC shielded, Cable entries: 4 x M40 (19,0-28,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), metal
Max. term. torque (Nm)
2,5
Mech. endurance (no. of oper.)
10000
Net weight
10.1225 kg
Nom. values w/cable size (mm²)
16
Number of poles
3
Product type
KUT 663 363VV102 2X1V T5EMC 4XM40MEMC M16M
Rated breaking cap. ICN AC-23A 415V (A)
504
Rated breaking cap. ICN AC-23A 500V (A)
320
Rated breaking cap. ICN AC-23A 690V (A)
320
Rated fused short-ckt current back-up fuse opt 1 (A)
80
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
63
Rated operational current AC-21A 500V (A)
63
Rated operational current AC-21A 690V (A)
63
Rated operational current AC-22A 415V (A)
63
Rated operational current AC-22A 500V (A)
63
Rated operational current AC-22A 690V (A)
63
Rated operational current AC-23A 415V (A)
63
Rated operational current AC-23A 500V (A)
40
Rated operational current AC-23A 690V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
37
Rated short-ckt. making cap. Icm 690V (kA)
3.1
Rated short-time withstand current 1s Icw 690V (kA)
2
Rated therm. current Ithe (A)
63
Rated therm. current Ith (A)
63
Short product description
Bypass switch EMC 3x63A IP66
Switch type
KU 380N
Technical name
3x63A 400V 30kW
Terminals bolt size (Cu mm²)
2,5..35
Volume
18 l
Width
300 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
150 mm
Package size 1 GTIN code
6419410311653
Package size 1 height
400 mm
Package size 1 volume
18 l
Package size 1 weight
10.1225 kg
Package size 1 width
300 mm
Sales unit
1
