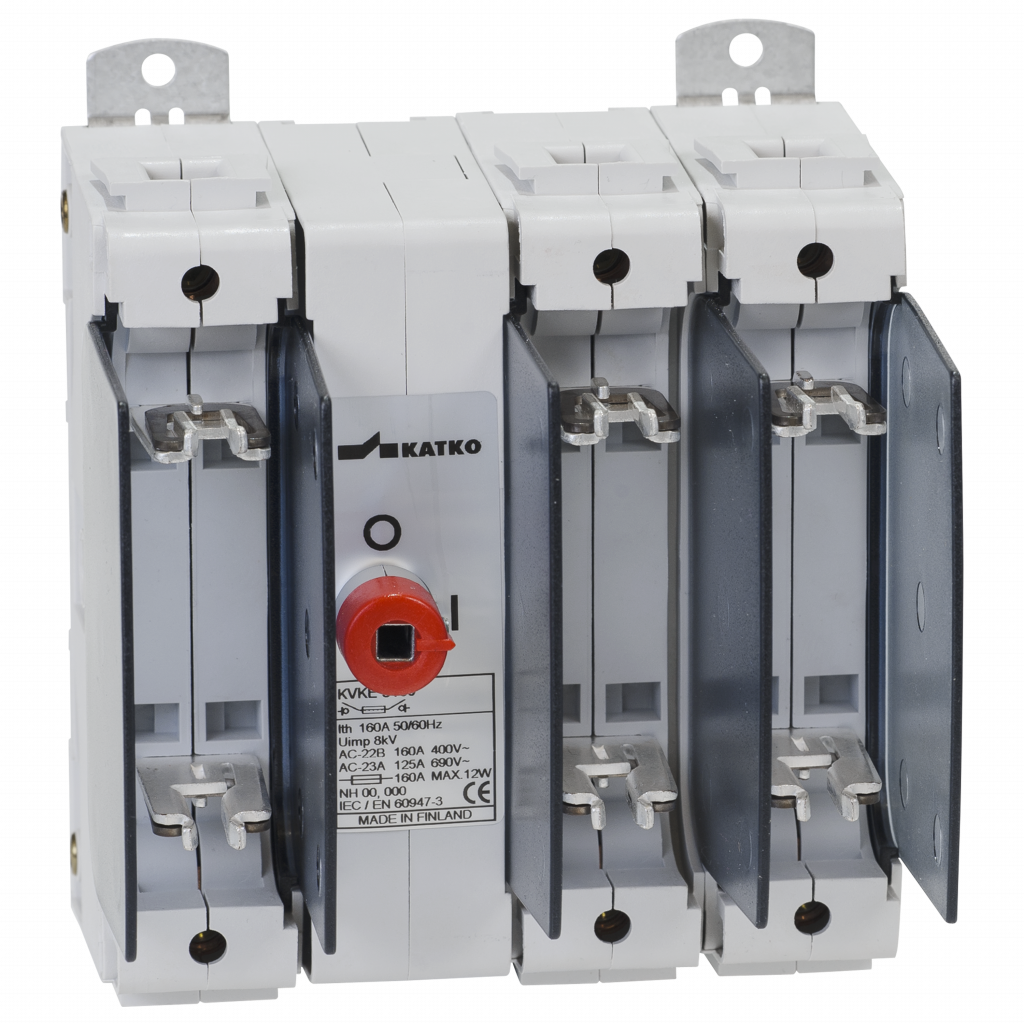

Switch fuse 3x160A DIN 000/00

KVKE 3160 LK12

Switch fuse 3x160A DIN 000/00

Katko FuseSafe switch fuses combine reliable switching and fuse protection in a compact, modular solution for professional electrical installations. Designed for flexible mounting and a wide range of configurations, FuseSafe supports efficient use of space while enhancing safety and operational clarity. Fuse covers and robust construction ensure dependable performance and long service life in demanding environments.

Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 690V (A)
160
View full details

Product details and documents

Technical data

Depth
135 mm
ETIM Class
EC001040
Fuse type BS88
A2-A3
Fuse type DIN
000/00
Fuse type fixing centres (mm)
73
Fuse type screw size
M5
Fuse type torque (Nm)
3
GTIN
6419410255018
Height
95 mm
Long product name
3-pole, Handle
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
20000
Net weight
0.8054 kg
Nom. values w/cable size (mm²)
70
Number of poles
3
Product type
KVKE 3160 LK12
Rated breaking cap. ICN AC-23A 415V (A)
1000
Rated breaking cap. ICN AC-23A 500V (A)
1000
Rated breaking cap. ICN AC-23A 690V (A)
1000
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
12
Rated fused short-ckt current RMS Ik opt 1 (kA)
80
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
125
Rated operational current AC-23A 500V (A)
125
Rated operational current AC-23A 690V (A)
125
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
75
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
110
Rated short-ckt. making cap. Icm 690V (kA)
6
Rated short-time withstand current 1s Icw 690V (kA)
4
Rated therm. current Ith (A)
160
Short product description
Switch fuse 3x160A DIN 000/00
Switch type
Fuse Switch
Technical name
3x160 400V 55kW
Terminals bolt size (Cu mm²)
6..70
Volume
2.1161 l
Width
165 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
135 mm
Package size 1 GTIN code
6419410255018
Package size 1 height
95 mm
Package size 1 volume
2.1161 l
Package size 1 weight
0.8054 kg
Package size 1 width
165 mm
Sales unit
1
