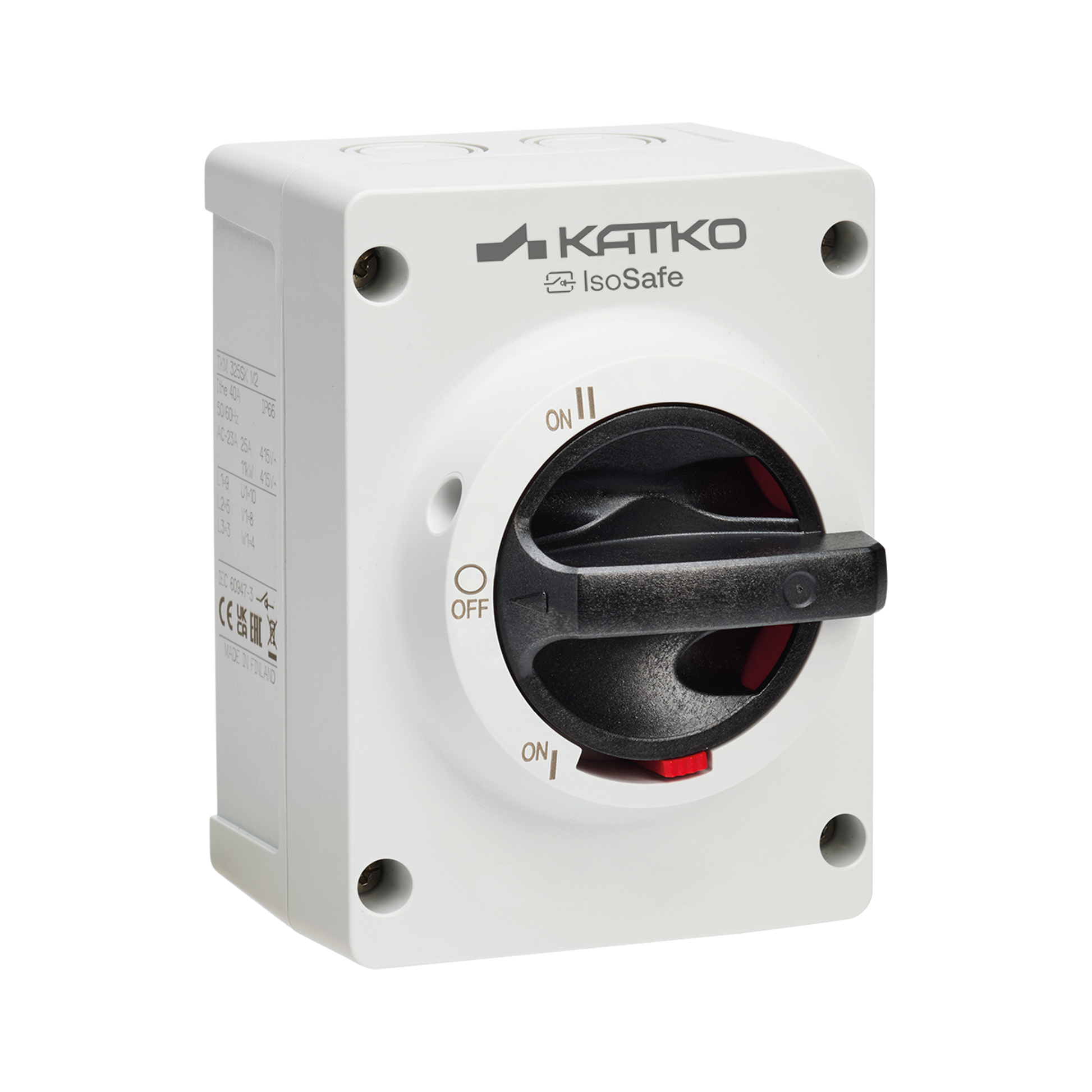

Designed for safe and reliable power source switching, Katko enclosed changeover switches (16-160A) ensure uninterrupted operation where continuity of supply is essential. They are engineered for clear operation and long-term durability.
Used in applications ranging from backup power systems to industrial installations, these switches provide dependable performance with straightforward installation and maintenance.
Product Number
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
GTIN
6419410210093
Depth
104 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
Height
130 mm
IP rating
IP66
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Net weight
0.4427 kg
Nom. values w/cable size (mm²)
4
Number of poles
1
Product type
TKM 116VV ST M2
Rated breaking cap. ICN AC-23A 415V (A)
128
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
16
Rated operational current AC-22A 415V (A)
16
Rated operational current AC-23A 415V (A)
16
Rated short-ckt. making cap. Icm 415V (kA)
1.5
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Isolating switch 1x16A IP66
Switch type
Cam Switch
Technical name
1x16A 400V 7.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.2979 l
Width
96 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
104 mm
Package size 1 GTIN code
6419410210093
Package size 1 height
130 mm
Package size 1 volume
1.2979 l
Package size 1 weight
0.4427 kg
Package size 1 width
96 mm
Sales unit
1
Downloadables
- Dimensional drawings media (IsoSafe_M2_Dim.png)
- Brochures (Katko IsoSafe Catalogue - Safety Switches & Isolators EN)
- Brochures (Katko IsoSafe Tuoteluettelo - Turvakytkimet FI)
- Brochures (Katalog Wyrobów KATKO IsoSafe – Wyłączniki bezpieczeństwa i rozłączniki PL)
- STEP files (IsoSafe_M2.zip)
- DWG files (IsoSafe_M2_LK10.zip)
- Installation manuals (KATKO_IsoSafe_TKM_installation_manual_39.pdf)
