Designed for safe and reliable direction control, Katko reverse motor control switches enable controlled forward and reverse operation in motor-driven applications. They ensure clear and secure switching where precise motor direction control is required.
Used in industrial machinery and building systems, these switches are built for frequent switching and demanding operating conditions, delivering dependable performance, clarity of operation, and long-term durability.
GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
Cable entries
3 x M25 (11,0-17,0 mm), plastic
Depth
104 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410344729
Height
130 mm
IP rating
IP66
Long product name

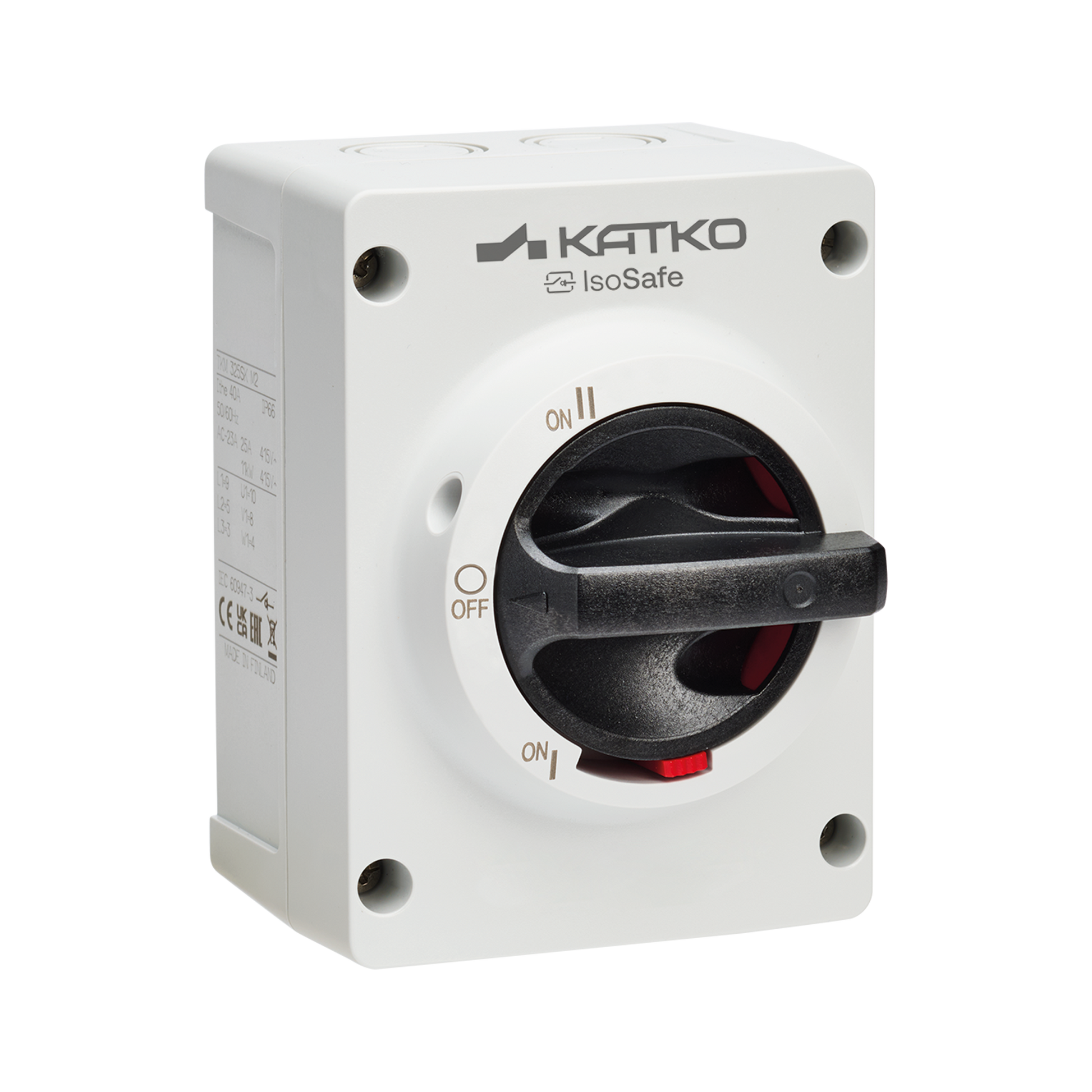

Reversing switch, 3-pole, Polycarbonate enclosure; W96.4 x H130.4 x D106, Cable entries: 3 x M25 (11,0-17,0 mm), plastic
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Nom. values w/cable size (mm²)
4
Number of poles
3
Product type
TKM 316SK M2 3XM25P
Rated breaking cap. ICN AC-23A 415V (A)
128
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
16
Rated operational current AC-22A 415V (A)
16
Rated operational current AC-23A 415V (A)
16
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
7.5
Rated short-ckt. making cap. Icm 415V (kA)
1.5
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Reverse switch 3x16A IP66
Switch type
Cam Switch
Technical name
3x16A 400V 7.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.2979 l
Width
96 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
250 mm
Package size 1 GTIN code
6419410344729
Package size 1 height
800 mm
Package size 1 volume
120 l
Package size 1 width
600 mm
Sales unit
1
Downloadables
- Dimensional drawings media (IsoSafe_M2_Dim.png)
- Brochures (Katko IsoSafe Catalogue - Safety Switches & Isolators)
- Brochures (Katko IsoSafe Tuoteluettelo - Turvakytkimet FI)
- Brochures (Katalog Wyrobów KATKO IsoSafe – Wyłączniki bezpieczeństwa i rozłączniki PL)
- STEP files (IsoSafe_M2.zip)
- DWG files (IsoSafe_M2_LK10.zip)
