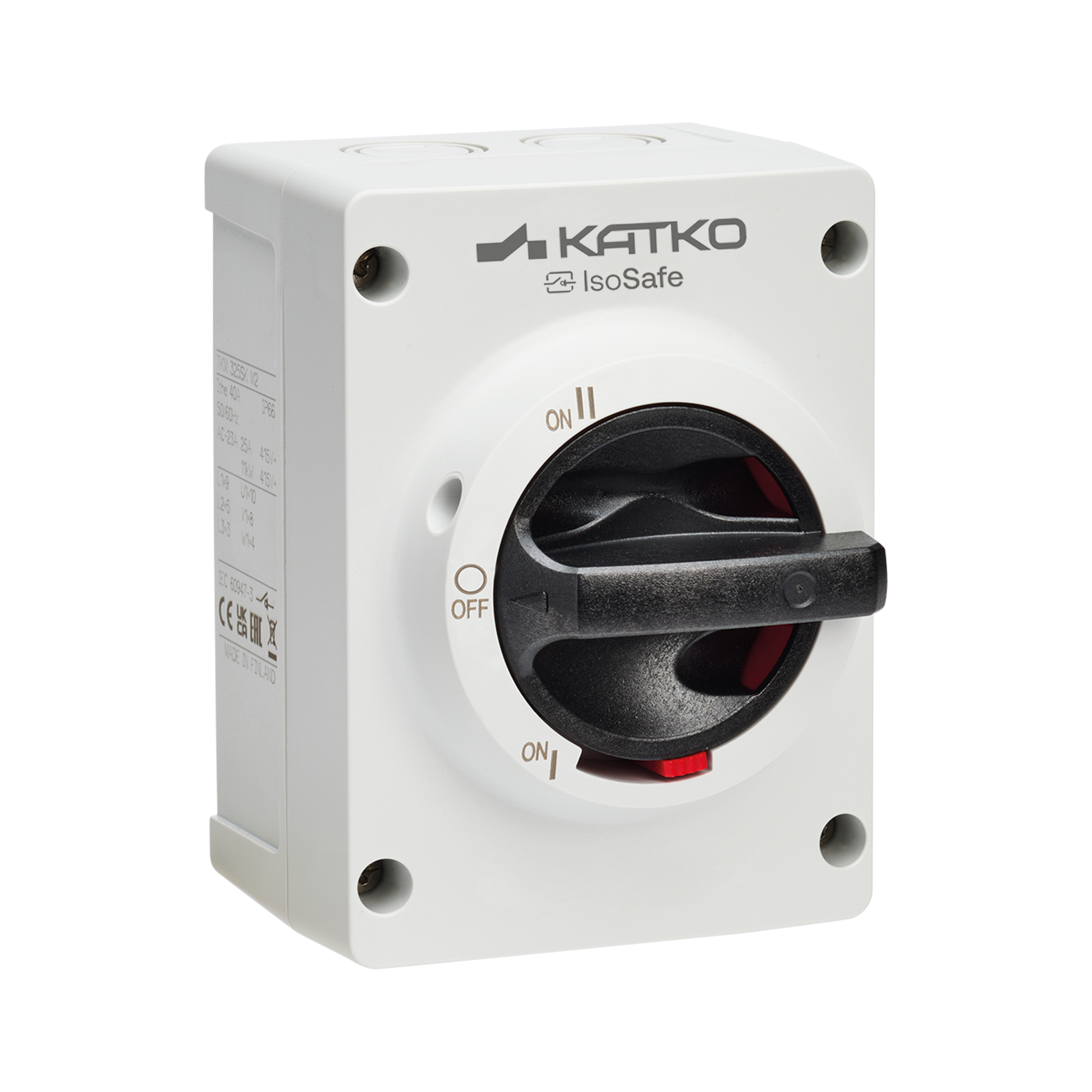

Reverse switch EMC 3x25A IP66 2NO
TKM 325SSSK M2EMC 3XM25MEMC M20PReverse switch EMC 3x25A IP66 2NO
Designed for safe and reliable direction control, Katko reverse motor control switches enable controlled forward and reverse operation in motor-driven applications. They ensure clear and secure switching where precise motor direction control is required.
Used in industrial machinery and building systems, these switches are built for frequent switching and demanding operating conditions, delivering dependable performance, clarity of operation, and long-term durability.
Technical data
Cable entries
3 x M25 (11,0-17,0 mm), metal EMC; 1 x M20 (7,0-13,0 mm), plastic
Depth
106 mm
EMC
true
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3635073
GTIN
6419410268520
Height
130.4 mm
IP rating
IP66
Long product name
Reversing switch, 3-pole, 2x Normally closed auxiliary contacts, Polycarbonate enclosure; W96.4 x H130.4 x D106,EMC shielded, Cable entries: 3 x M25 (11,0-17,0 mm), metal EMC; 1 x M20 (7,0-13,0 mm), plastic
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
TKM 325SSSK M2EMC 3XM25MEMC M20P
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated short-ckt. making cap. Icm 415V (kA)
1.5
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Reverse switch EMC 3x25A IP66 2NO
Switch type
Cam Switch
Technical name
3x25A 400V 11kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.3325 l
Width
96.4 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
124 mm
Package size 1 GTIN code
6419410200100
Package size 1 height
369 mm
Package size 1 volume
7.321 l
Package size 1 weight
3.3784 kg
Package size 1 width
160 mm
Sales unit
1
Downloadables
- Dimensional drawings media (8f08801aed79a1e088e56aa7b70ef3f5a1778766_IsoSafe_M2_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
- Installation manuals (8fbb7a807c2367667dbb5971de2947b07f70822c_KATKO_IsoSafe_TKM_installation_manual_39.pdf)
