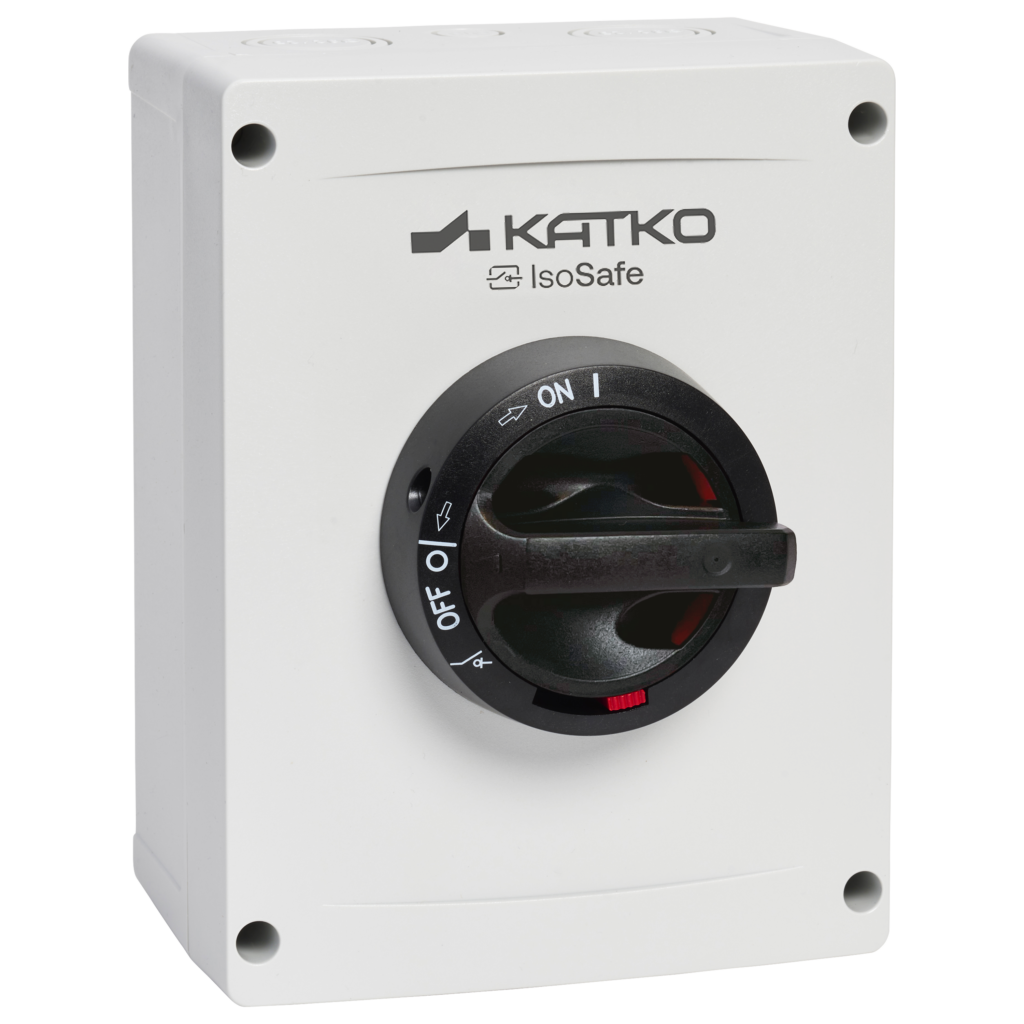

Reverse switch EMC 3x25A IP66 2NO

TKM 325SSSK M3EMC 3XM25MEMC M16P

Reverse switch EMC 3x25A IP66 2NO

Designed for safe and reliable direction control, Katko reverse motor control switches enable controlled forward and reverse operation in motor-driven applications. They ensure clear and secure switching where precise motor direction control is required.

Used in industrial machinery and building systems, these switches are built for frequent switching and demanding operating conditions, delivering dependable performance, clarity of operation, and long-term durability.

E-number FI
3635088
GTIN
6419410268551
Rated operational current AC-23A 415V (A)
25
Enclosure type
Polycarbonate
Enclosure
M3 (144 x 190 x 96 mm)
View full details

Product details and documents

Technical data

Cable entries
3 x M25 (11,0-17,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), plastic
Depth
96 mm
EMC
true
Enclosure
M3 (144 x 190 x 96 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3635088
GTIN
6419410268551
Height
190 mm
IP rating
IP66
Long product name
Reversing switch, 3-pole, 2x Normally closed auxiliary contacts, Polycarbonate enclosure; W144 x H190 x D96,EMC shielded, Cable entries: 3 x M25 (11,0-17,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), plastic
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Net weight
0.8152 kg
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
TKM 325SSSK M3EMC 3XM25MEMC M16P
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated short-ckt. making cap. Icm 415V (kA)
1.5
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Reverse switch EMC 3x25A IP66 2NO
Switch type
Cam Switch
Technical name
3x25A 400V 11kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
2.6266 l
Width
144 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
108 mm
Package size 1 GTIN code
6419410329887
Package size 1 height
262 mm
Package size 1 volume
4.584 l
Package size 1 weight
2.9776 kg
Package size 1 width
162 mm
Sales unit
1
