Designed for safe and reliable power source switching, Katko enclosed changeover switches (16-160A) ensure uninterrupted operation where continuity of supply is essential. They are engineered for clear operation and long-term durability.
Used in applications ranging from backup power systems to industrial installations, these switches provide dependable performance with straightforward installation and maintenance.
GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
Cable entries
3 x M25 (11,0-17,0 mm), plastic
Depth
106 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410345771
Height
130.4 mm
IP rating
IP66
Long product name
3-pole, Polycarbonate enclosure; W96.4 x H130.4 x D106, Cable entries: 3 x M25 (11,0-17,0 mm), plastic
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
20000
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type

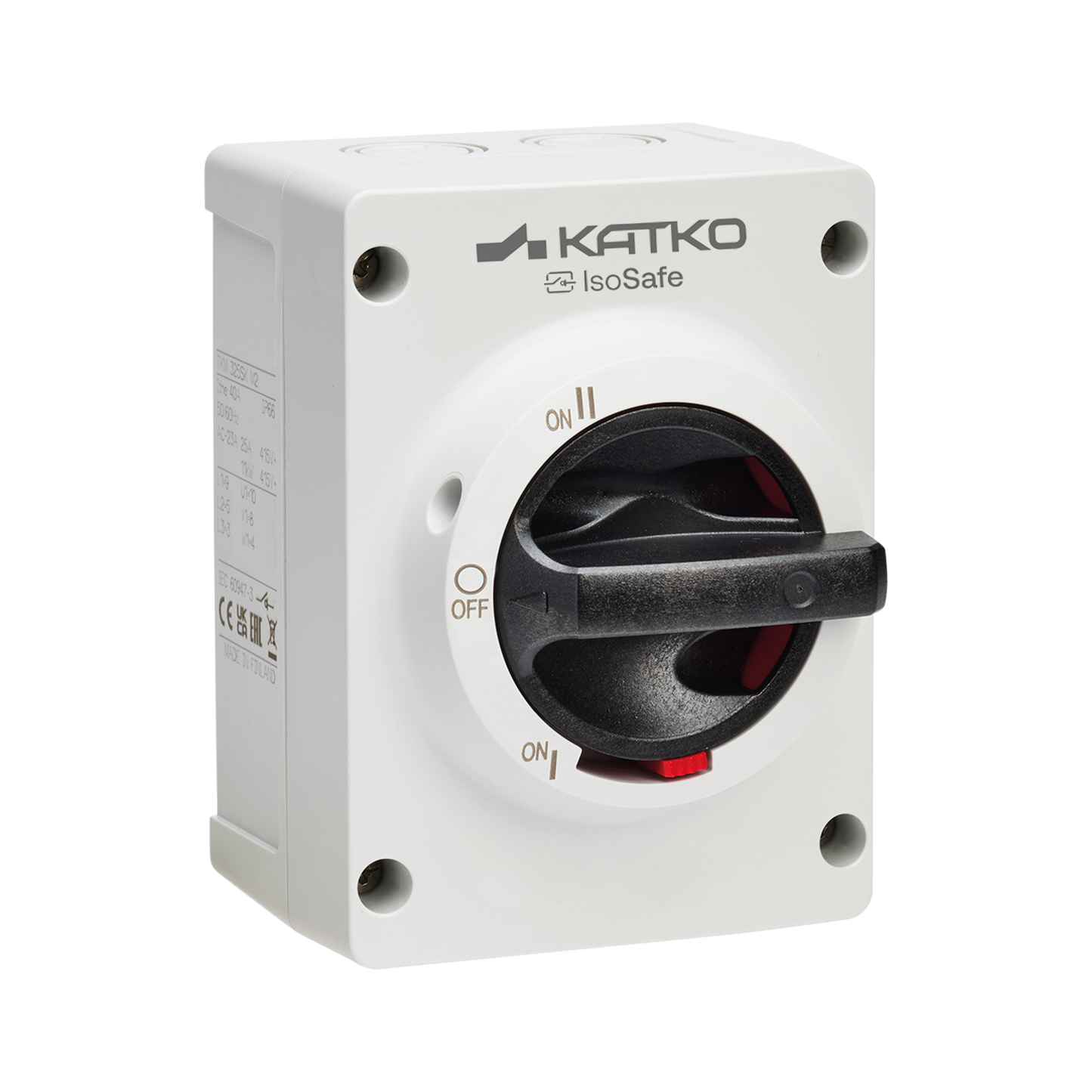

TKM 340VV M2 3XM25P
Rated breaking cap. ICN AC-23A 415V (A)
320
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
690
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-22A 415V (A)
40
Rated operational current AC-23A 415V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
18.5
Rated short-ckt. making cap. Icm 415V (kA)
1.5
Rated short-time withstand current 1s Icw 415V (kA)
1.1
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Change-over switch 3x40A IP66
Switch type
Cam Switch
Technical name
3x40A 400V 18.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.3325 l
Width
96.4 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
108 mm
Package size 1 GTIN code
6419410311202
Package size 1 height
262 mm
Package size 1 volume
4.584 l
Package size 1 weight
2.7554 kg
Package size 1 width
162 mm
Sales unit
1
Downloadables
- Dimensional drawings media (8f08801aed79a1e088e56aa7b70ef3f5a1778766_IsoSafe_M2_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
Related accessories
-
Protective roof for M2 enclosures, AlZn
Product typeKSL10
