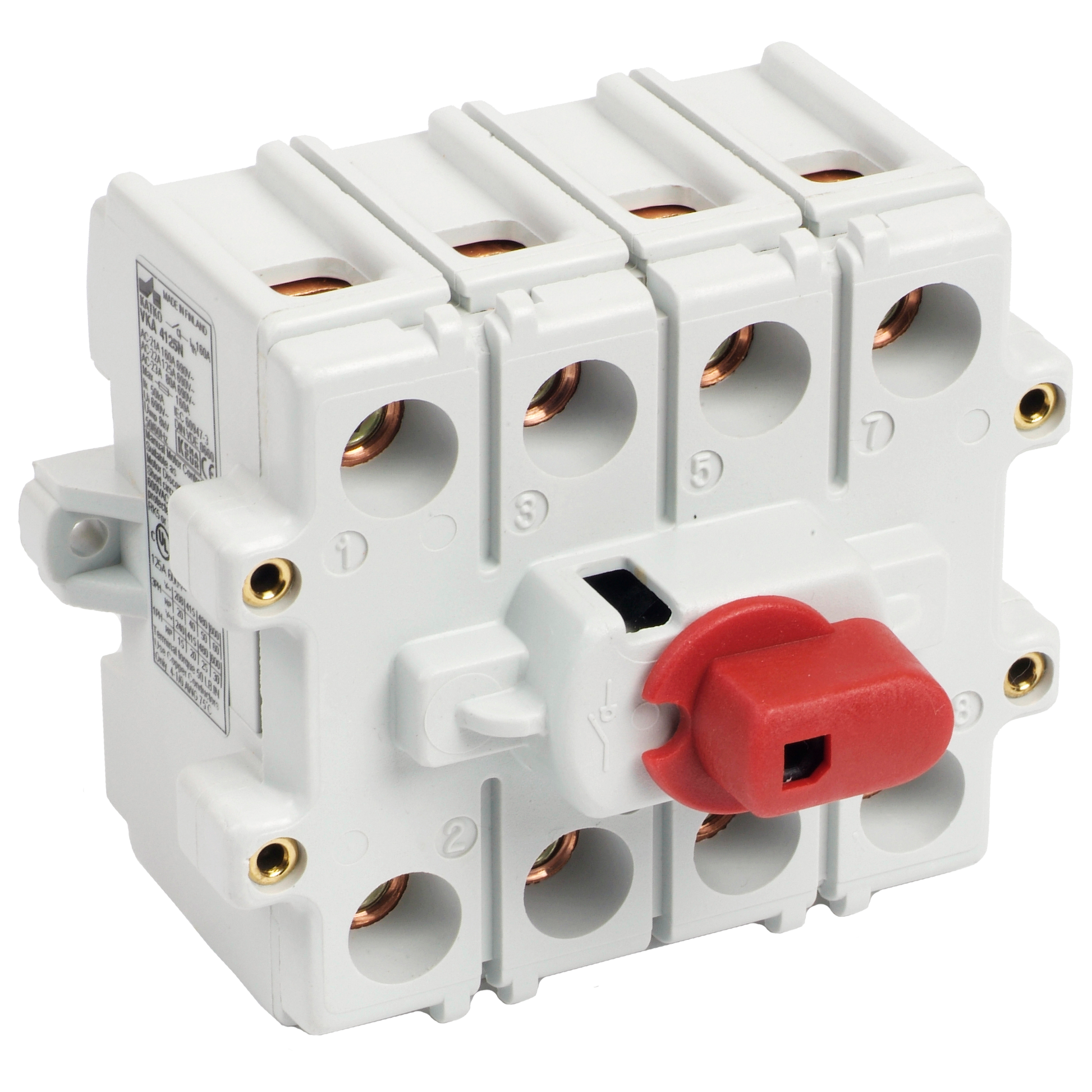

VKA 4160N KVKA

Load break switch 4x160A

VKA 4160N KVKA

Product Number
21901
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 690V (A)
160
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

GTIN
6419410219010
Depth
82 mm
ETIM Class
EC000216
Height
82 mm
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
0.713 kg
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type
VKA 4160N KVKA
Rated breaking cap. ICN AC-23A 415V (A)
1080
Rated breaking cap. ICN AC-23A 500V (A)
1000
Rated breaking cap. ICN AC-23A 690V (A)
1000
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
13.7
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
135
Rated operational current AC-23A 500V (A)
125
Rated operational current AC-23A 690V (A)
125
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
75
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
75
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
5.1
Rated short-time withstand current 1s Icw 690V (kA)
3.5
Rated therm. current Ith (A)
200
Short product description
Load break switch 4x160A
Switch type
Load Break Switch
Technical name
4x160A 690V AC-22
Terminals bolt size (Cu mm²)
6..70
Volume
0.6657 l
Width
99 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
82 mm
Package size 1 GTIN code
6419410219010
Package size 1 height
82 mm
Package size 1 volume
0.5514 l
Package size 1 weight
0.713 kg
Package size 1 width
82 mm
Sales unit
1
