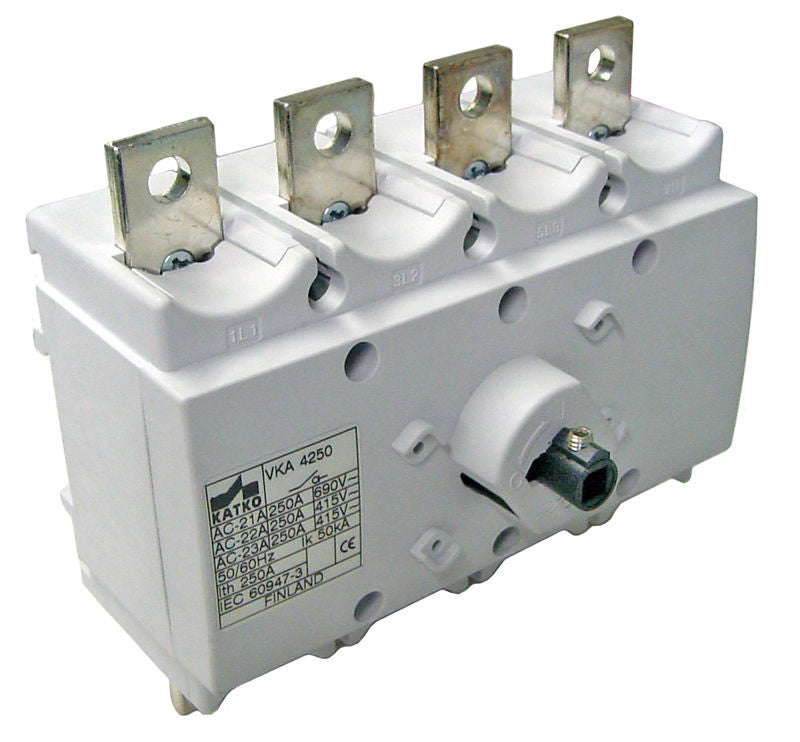

Katko LoadSafe 200–250A compact load break switches deliver reliable load switching for medium-capacity installations up to 250A. Their compact design is ideal for applications where space is limited but high performance is still required. Tested for durability and consistent operation, switches support dependable electrical distribution in a variety of industrial and commercial environments.
Technical data
Depth
107 mm
ETIM Class
EC000216
E-number FI
3609243
GTIN
6419410219133
Height
87 mm
Long product name
Rotary switch, 4-pole, Handle, 2 x Terminal covers,6 x Phase barriers
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
1.537 kg
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type
VKA 4200 L228AD12T6LK12 2XLS6XVS
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current peak value (kA)
22
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated short-ckt. making cap. Icm 415V (kA)
11.4
Rated short-time withstand current 1s Icw 415V (kA)
6.5
Rated therm. current Ith (A)
200
Short product description
Load break switch 4x200A
Switch type
Load Break Switch
Technical name
4x200A 400V 110kW
Terminals bolt size (Cu mm²)
M8
Volume
2.5134 l
Width
270 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
107 mm
Package size 1 GTIN code
6419410219133
Package size 1 height
87 mm
Package size 1 volume
0.9961 l
Package size 1 width
107 mm
Sales unit
1
Downloadables
- Dimensional drawings media (e44d1c5996fe2fcad09afb0f9bbcf30596fe94c6_LoadSafe_VKA_3P_4P_200_250_Dim.png)
- Brochures (4c8f06d638a121ff864ef932f16f3b2de91e7803_KATKO_LoadSafe_catalogue_102024_en.pdf)
- Brochures (4e35c4a88ba0a39ae59459765a5755dd5d53529c_KATKO_LoadSafe_catalogue_082022_fi.pdf)
- STEP files (78ba173ab8c33323be443058cb40814dad0a0da6_LoadSafe_VKA_4P_200_250.zip)
- Installation manuals (b607cfcdd47a1af71f0f77e0d735b839aab7e491_KATKO_LoadSafe_VKA_200_250_installation_manual_51_en.pdf)
