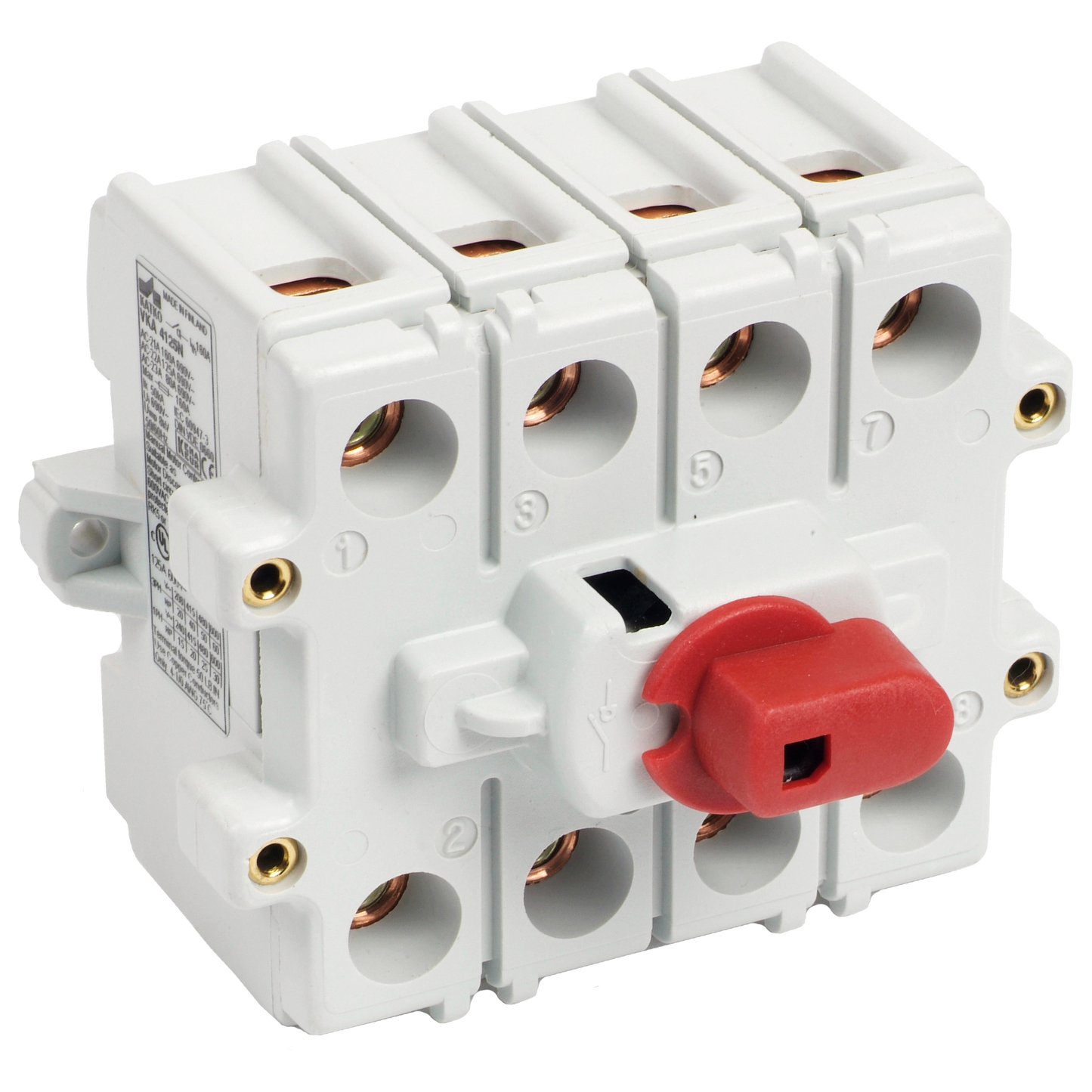

Load break switch 4x80A

VKA 480N

Load break switch 4x80A

GTIN
6419410218440
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 690V (A)
80
View full details

Product details and documents

Technical data

Ampere rating 600V
80.0
Depth
82 mm
ETIM Class
EC000216
GTIN
6419410218440
Height
82 mm
HP 208V
15.0
HP 415V
15.0
HP 480V
30.0
HP 600V
40.0
Long product name
Rotary switch, 4-pole
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
0 kg
Nom. values w/cable size (mm²)
50
Number of poles
4
Product type
VKA 480N
Rated breaking cap. ICN AC-23A 415V (A)
504
Rated breaking cap. ICN AC-23A 500V (A)
504
Rated breaking cap. ICN AC-23A 690V (A)
504
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
13.7
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
100
Rated operational current AC-21A 500V (A)
100
Rated operational current AC-21A 690V (A)
100
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 500V (A)
80
Rated operational current AC-22A 690V (A)
80
Rated operational current AC-23A 415V (A)
63
Rated operational current AC-23A 500V (A)
63
Rated operational current AC-23A 690V (A)
63
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
45
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
45
Rated short-ckt. making cap. Icm 690V (kA)
5.1
Rated short-time withstand current 1s Icw 690V (kA)
3.5
Rated therm. current Ith (A)
100
Short product description
Load break switch 4x80A
Switch type
Load Break Switch
Technical name
4x80A 690V AC-22
Terminals bolt size (Cu mm²)
6..70
UL
UL 60947-4-1A
Volume
0.6657 l
Width
99 mm
Wire size Cu
8-1/0 AWG

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
82 mm
Package size 1 GTIN code
6419410218440
Package size 1 height
82 mm
Package size 1 volume
0.5514 l
Package size 1 weight
0 kg
Package size 1 width
82 mm
Sales unit
1

Downloadables

    No downloadable files available for this product.
