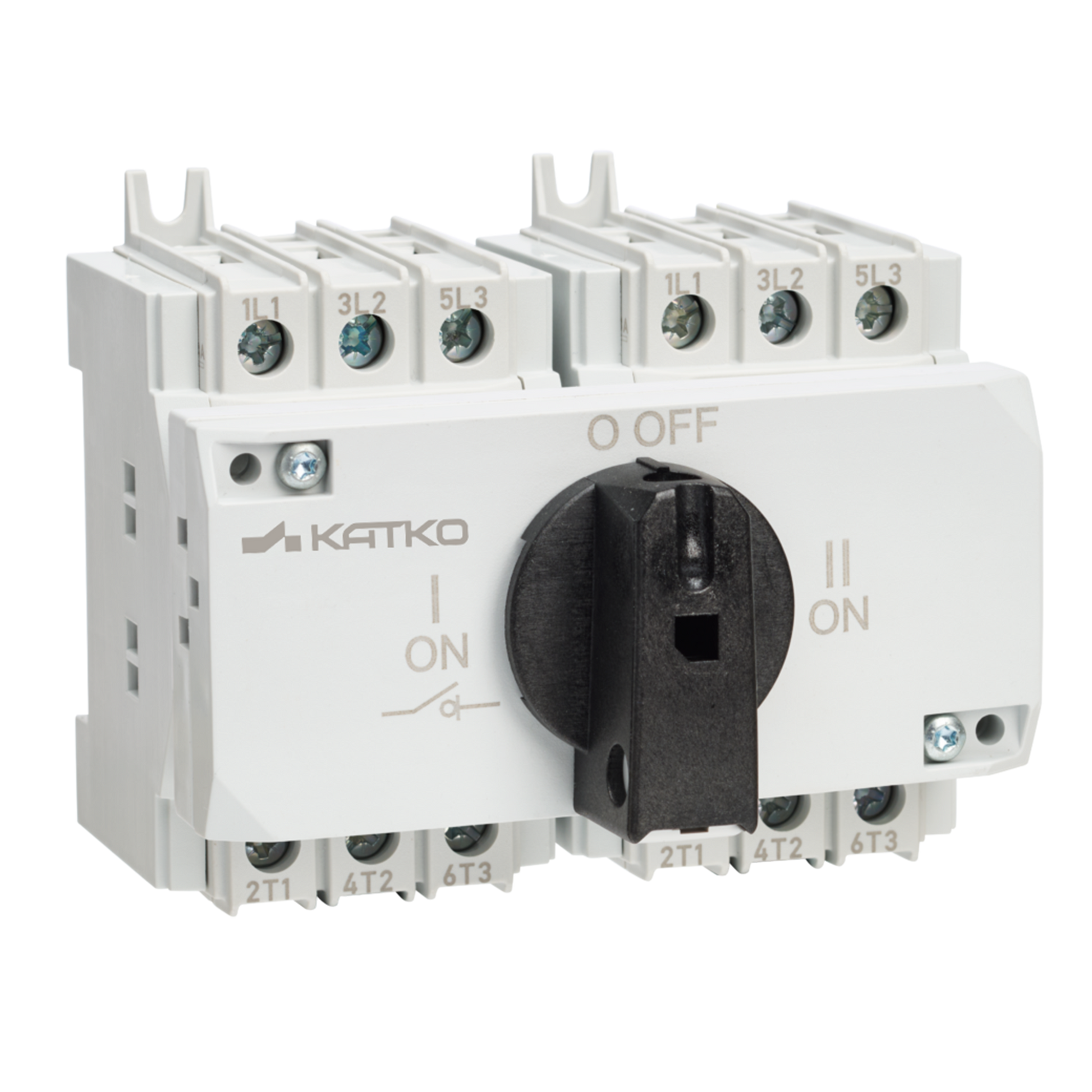

Change-over switch 1-0-2 3x25A

KU 325CO

Change-over switch 1-0-2 3x25A

Katko LoadSafe load break switches 16–40A are compact and versatile solutions designed for efficient load switching in smaller electrical systems. Available in 2-, 3-, 4-, 6- and 8-pole versions. The robust switch design and silver-contact technology ensure safe and durable operation in demanding environments.

The load break switches are VDE-approved and independently tested by third parties, ensuring compliance with international quality and safety standards. Manufactured in Finland, these switches and accessories provide high performance and installation efficiency, helping you build durable power distribution solutions.

E-number FI
3663114
GTIN
6419410337790
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-22A 690V (A)
25
View full details

Product details and documents

Technical data

Depth
79.7 mm
ETIM Class
EC000216
E-number FI
3663114
GTIN
6419410337790
Height
71 mm
Long product name
Rotary switch, Changeover switch with 1-0-2 positions,3-pole
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
KU 325CO
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated breaking cap. ICN AC-23A 500V (A)
200
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
25
Rated fused short-ckt current peak value (kA)
3.8
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-22A 500V (A)
25
Rated operational current AC-22A 690V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated operational current AC-23A 500V (A)
25
Rated operational current AC-23A 690V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ith (A)
40
Short product description
Change-over switch 1-0-2 3x25A
Switch type
Load Break Switch
Technical name
3x25A 690V AC-22
Terminals bolt size (Cu mm²)
1,5..16
Volume
0.5353 l
Width
94.6 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
79.7 mm
Package size 1 GTIN code
6419410337790
Package size 1 height
71 mm
Package size 1 volume
0.451 l
Package size 1 width
79.7 mm
Sales unit
1
